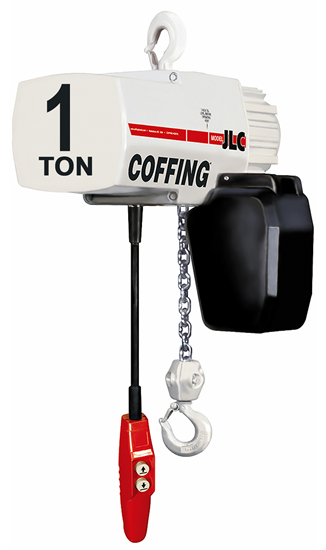

1-Ton Coffing JLC Electric Chain Hoist

Manufacturer: Coffing Hoists

Availability: In stock

SKU: JLC2016-CUST

Lead Time (subject to change, call to verify): typically ships in 13-16 business days

Lift *

Voltage *

Hoist Suspension *

Hoist Power Cord Length *

Hoist Accessories

Weather Resistant Nylon Cover (hoist only) [+$241.00]
Motorized Trolley Brake [+$751.00]

Lifting Speed *

16 fpm (single speed)

Chain Container *

Polyethylene Chain Container Included

Push Button Control Drop Length *

Standard - 4 ft. less than the length of the lift

$3,233.00

Qty:

Coffing Electric Chain Hoist Documents

Spec Sheet

Coffing JLC Electric Chain Hoist Brochure

Manual

Coffing JLC Electric Chain Hoist Manual

Manual

Coffing JLCMT Chain Hoist Manual

Product Specifications

Attribute name	Attribute value
Features	Capacity: 1-Ton (907.1 kg.) Headroom: 18-1/8 inches with no trolley, 17-5/16 inches with trolley Mfg Base Model No.: JLC-2016 No. of Load Chains: 1 Hoist Motor Horsepower: 1 hp Ship Weight: 204 lbs. H4 duty rating is ideal for heavy-duty industrial applications. The hoist enclosure is a compact aluminum housing for portability and ease of installation. The finned aluminum motor housing provides cooling and is Class F insulated for longer life. Hoist electrical panel, provides easy access to controls and motor leads with numbered connection wires for changing voltage on dual voltage motors or performing routine hoist maintenance. Limit switches are adjustable to regulate upper and lower load travel. Brass nuts are standard for improved repeatability and chain positioning. Mechanical overload device is factory-calibrated to protect the hoist, operator and supporting structures from damaging overloads, chain jamming, and reverse phasing. Hoist motor brake is a heavy duty multiple disc type, direct acting design for positive load spotting and holding. 5-pocket load sheave, increases chain and sheave engagement 25% over hoists with conventional four-pocket sheaves. Provides smoother lifting and reduces chain wear over four-pocket sheaves. Push button station is ergonomically designed to fit the operator's hand for left or right single-handed thumb operation. NEMA 3R rated (weather resistant) with 24 volt control is standard. Hoists transmission has precision machined alloy steel gears that run in an oil bath for longer, quieter operation. WRAP-AROUND SIDE PLATES - Act as safety lugs and as bumpers to protect wheels. Available to fit American Standard I-Beams, wideflange, and patented track beams. PRECISION TROLLEY WHEELS - Machined, cast iron wheels with sealed, lifetime lubricated ball bearings for extended trolley life. Motorized trolley wheels are heat treated for added durability. TROLLEY DESIGN - 4-wheel design negotiates 48 inch minimum radius curve, including patented track applications (60 inch for JLCET 2-Ton only). Specify track type and beam size.
Warranty	Lifetime Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of Origin	Made in the USA
