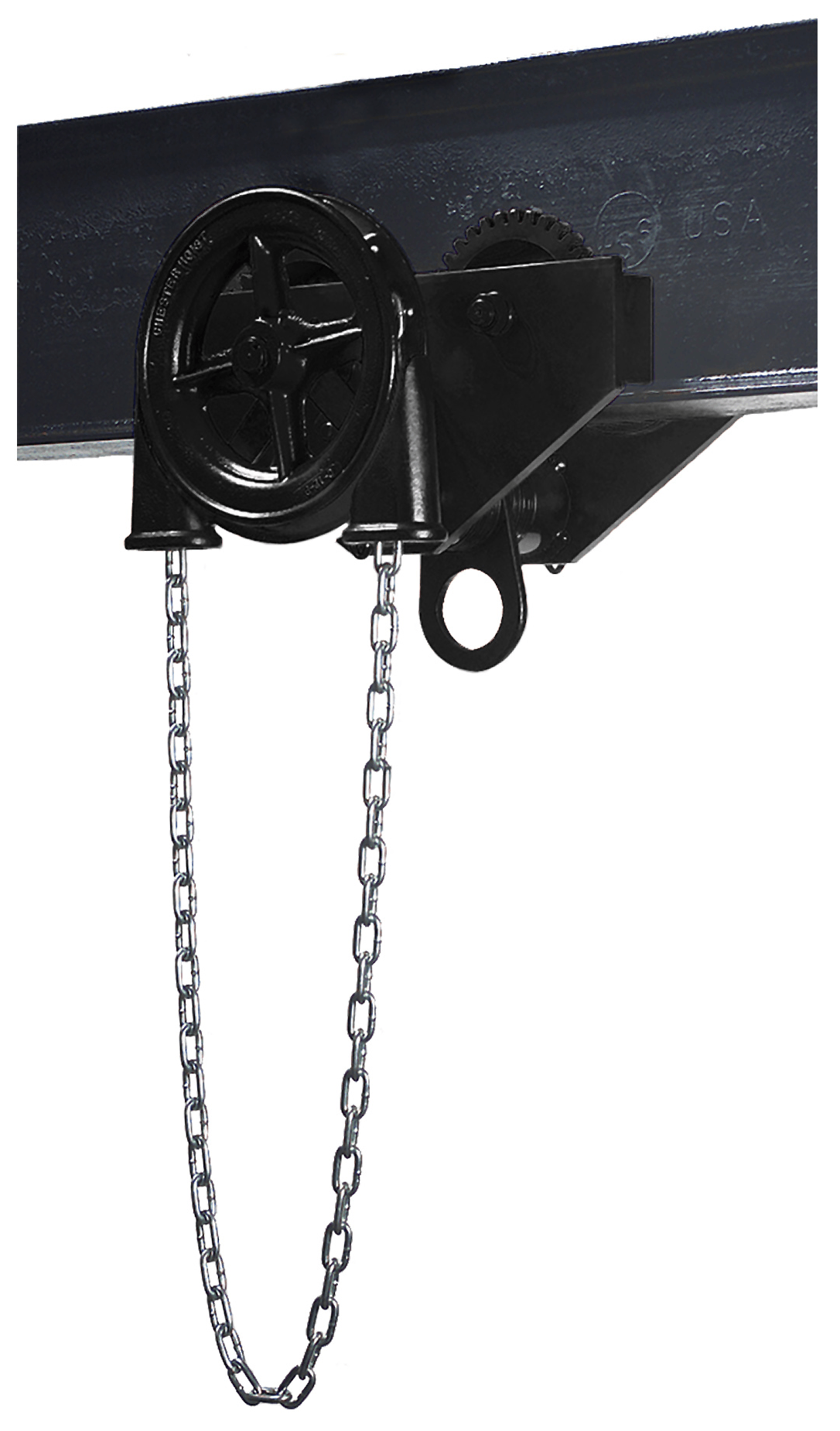

10-Ton Series 84A or Model PT Geared Trolley, 1642-1000

Availability: In stock

SKU: 1642-1000

Lead Time (subject to change, call to verify): typically ships in 40-50 business days

Hand Chain Drop Length *

Beam Flange Width

$5,548.93

Qty:

Documents, Drawings, and Manuals

Brochure

CM Series 84A/Model PT Trolley Brochure

Product Specifications

Attribute name	Attribute value
Features	Capacity: 10 Ton (Metric Rated) / 22,000 lbs I-Beam Width: 4.62 in to 8.00 in Minimum Beam Height: 10 in Minimum Radius Curve: 60 in Approx. Shipping Weight: 360 lbs Manufactured for heavy duty, industrial grade applications. Lifetime lubricated, precision ball bearings on trolleys through 3 ton capacity. Trolleys with capacities 4 tons and greater are equipped with eight sealed, Timken tapered roller bearings and grease fittings. Trolley wheels are fully machined from alloy cast iron and hardened for high strength and long life. Alloy steel axles and equalizer pins are heat treated for maximum strength and wear life. Geared with hand pull chain for more efficient movement along the beam.
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of Origin	Made in the USA
