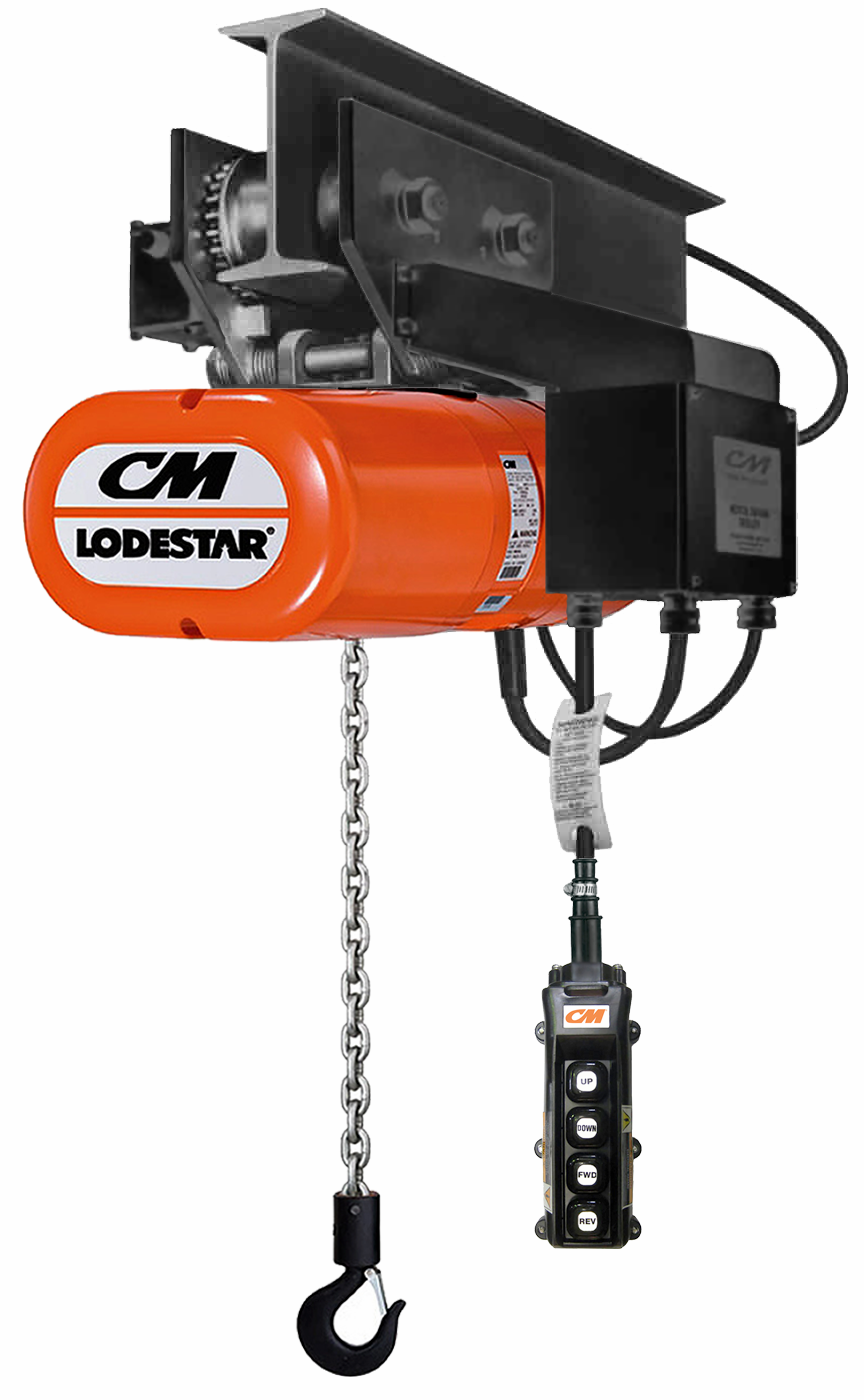

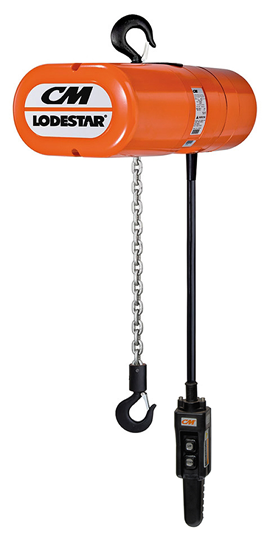

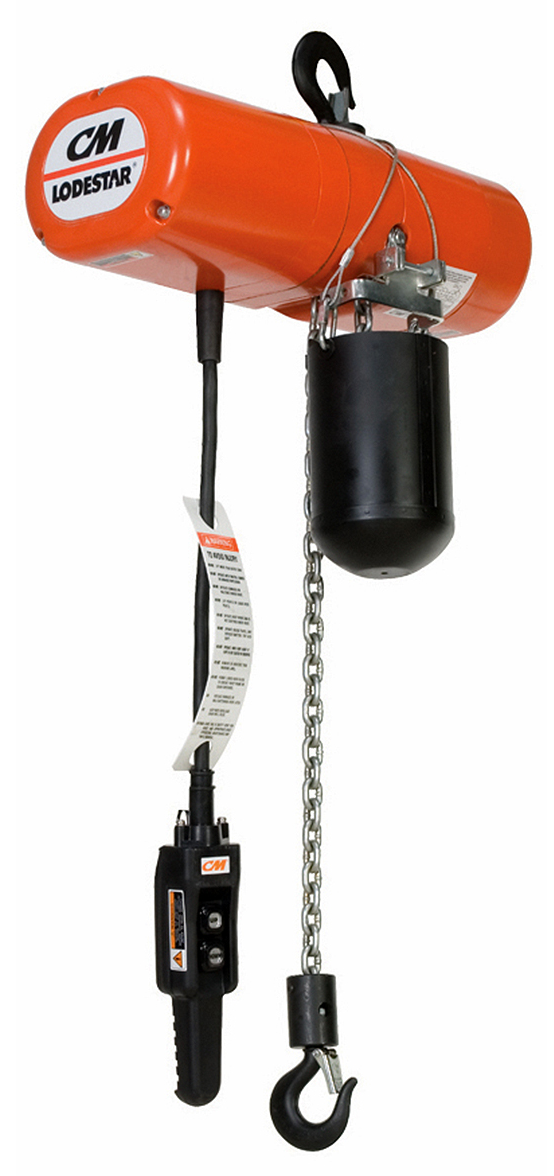

2-Ton CM Classic LodeStar Electric Chain Hoist, Single Phase

Availability: In stock

SKU: 3532-CUST

Lead Time (subject to change, call to verify): typically ships in 7-10 business days

Lift *

Lifting Speed *

Hoist Suspension *

Chain Container *

Hoist Power Cord Length *

Hoist Accessories

Voltage *

Push Button Control Drop Length *

$4,232.00

Qty:

Documents, Drawings, and Manuals

Spec Sheet

CM Electric Chain Hoists Specs and Drawings

Manual

CM LodeStar Electric Chain Hoist Manual

Spec Sheet

CM Wind Industry Hoists

Spec Sheet

CM Food Grade and Entertainment Hoists

Product Specifications

Attribute name	Attribute value
Capacity	2-ton / 1,814.3 kg
Manufacturer/Brand	CM (Columbus McKinnon)
Duty Cycle	Hoist Motor - 30 minutes
Hoist Classification	ASME H4 (High volume handling of heavy loads, frequently near rated loads, with a total running time not over 50% of the work period.)
Hoist Standards	Meets ASME B30.16
Hoist Housing Paint / Finish	Acid-Resistant Powder Coat Paint, CM Orange Color
Hoist Gear Box	Precision machined helical gearing, is lifetime lubricated with non-oxidizing grease. Precision machined and hardened 5 pocket lift-wheel with hardened chain guides provide smooth operation, and long life.
Hoist Housing	Cast lightweight aluminum housing
Load Chain	CM Hoistaloy, Zinc Plated
Controls	Rugged NEMA 4X push button station. Control voltage of 115 VAC.
Hoist Brake	Heavy Duty DC Brake
Hoist Hooks	Hardened, forged steel, safety latch type hooks, powder coated
Country of Origin	Made in the USA
Warranty	Lifetime Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
