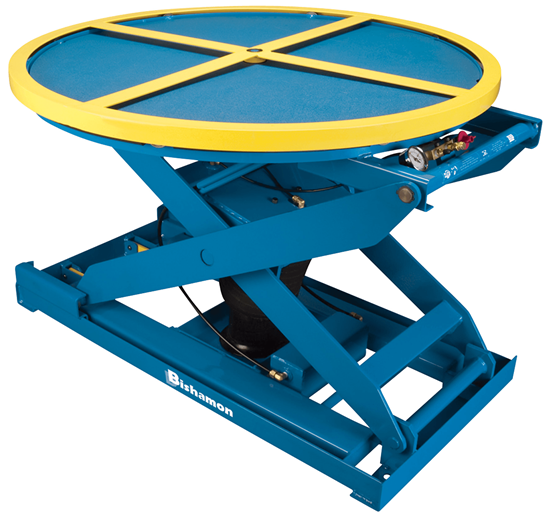

Bishamon EZ Loader, Capacity 4,000 lbs

Manufacturer: Bishamon

Availability: In stock

SKU: EZ Loader

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Platform Size *

Table Accessories

Accordion Bellows Skirting [+$1,061.21]
Portability - 2 swivel and 2 rigid wheels (adds 7 in. to height) [+$1,177.61]
Rotator Ring Brake [+$201.29]

$3,325.00

Qty:

Documents, Drawings, and Manuals

Brochure

Bishamon EZ Loader and EZ X Loader Brochure

Manual

EZ Loader Operations and Service Manual

Product Specifications

Attribute name	Attribute value
Features	Capacity: 4,000 lbs. Self-Leveling Capacity Range: 250 lbs. up to 3,500 lbs. Max. Height: 30.50 in. (29.53 in. for non-rotating model) Min. Height: 10.50 in. (9.63 in. for non-rotating model) Approx. Ship Weight: 500 lbs. Self-leveling design automatically keeps the top of the load at a convenient working height to help eliminate bending and improve productivity. Integral rotator ring helps eliminate reaching and stretching. Captive air operation eliminates cumbersome mechanical springs and gives more controlled (dampened) movement of the platform. A three position EZ Adjust knob allows adjustment of the collapsed capacity without changing air pressure. Secured ball bearing center pivot of the 43 in. diameter rotator ring provides smooth, even rotation. Pressure relief valve prevents excess pressure build-up. Surfaces are phosphatized and powder coated with a high quality polyester for a lasting, durable finish. Rollers are entrapped in the base frame and platform for added stability. A safety finger guard eliminates pinch points with the rotator spoke and bearings. Integral maintenance blocks. EZ Loaders arrive at your facility fully assembled - just add air! Easily transported with a fork truck or via optional portability packages. The EZ Loader is CE marked under the Machinery Directive (2006/42/EC).
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
