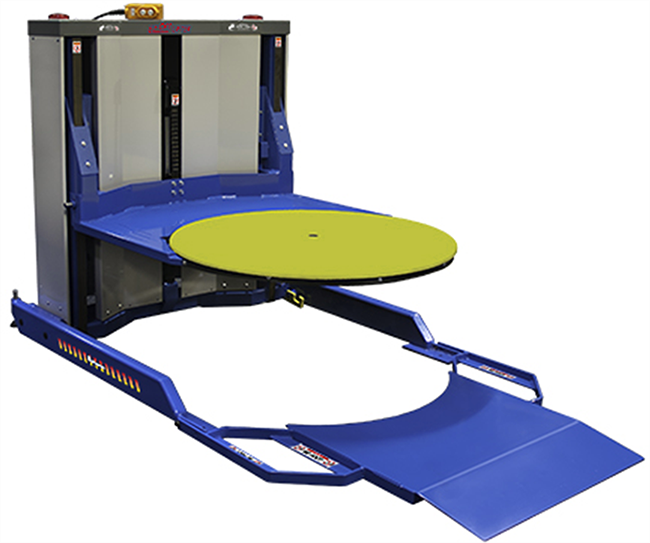

Bishamon EZ OFF Lifter EZO-25E, Capacity 2,500 lbs

Manufacturer: Bishamon

Availability: In stock

SKU: EZO-25E

Lead Time (subject to change, call to verify): typically ships in 20-25 business days

Accessories

$10,500.00

Qty:

Documents, Drawings, and Manuals

Brochure

Bishamon EZ OFF Lifter Brochure

Product Specifications

Attribute name	Attribute value
Features	Vertical Travel: 28.25 in. Raised Height: 30.00 in. Lowered Height: 1.75 in. Max. Pallet Size: 44 in. x 48 in. Ramp Positions: 1 Installation: Not Anchored Approx. Ship Weight: 1,350 lbs. Feet-clear safety circuit automatically stops the platform descent at 9 in. above the floor preventing unintentional foot entrapment under the platform or pallet. Safety warning lights and alarm alert the operator before the platform lowers from the intermediate safety stop. Platform safety covers guard pinch points around the mast and mast rollers. Chain cover guards pinch points around the upper chain wheel. Hydraulic power unit with unitized control valves and reservoir. 1 HP, 115 V electric motor. 40.50 in. diameter rotating disk supported by 32 precision ball bearings. Automatic platform lock prevents platform rotation in the lowered position. Hinged integrated approach ramp. Lifting tabs and platform catches for transporting with a forklift. Rear leveling feet. Durable powder coated finish.
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
