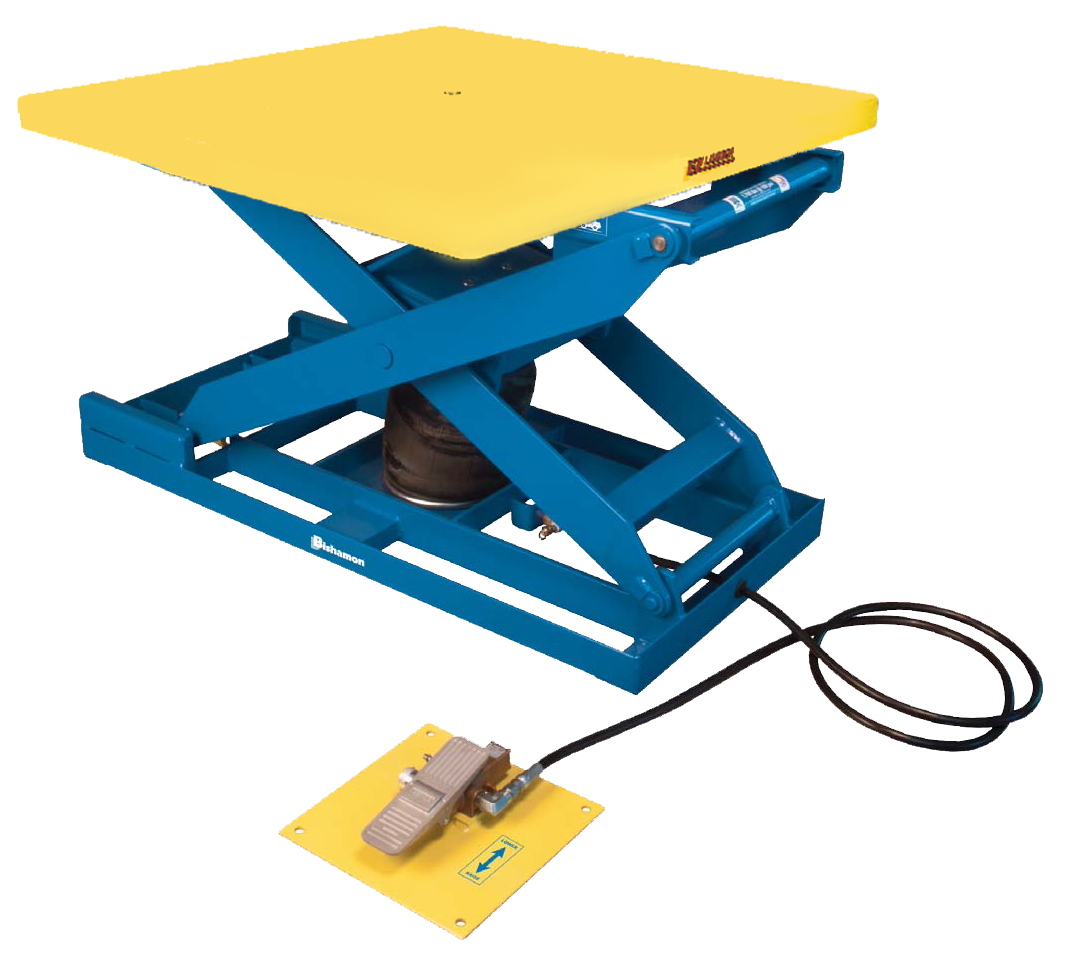

Bishamon EZ Up EZU-15-R Pneumatic Lift Table, Capacity 1,500 lbs

Manufacturer: Bishamon

Availability: In stock

SKU: EZU-15-R

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Platform Size *

Lift Control *

Table Accessories

$4,025.00

Qty:

Documents, Drawings, and Manuals

Brochure

Bishamon EZ-Up Pneumatic Lift Table Brochure

Product Specifications

Attribute name	Attribute value

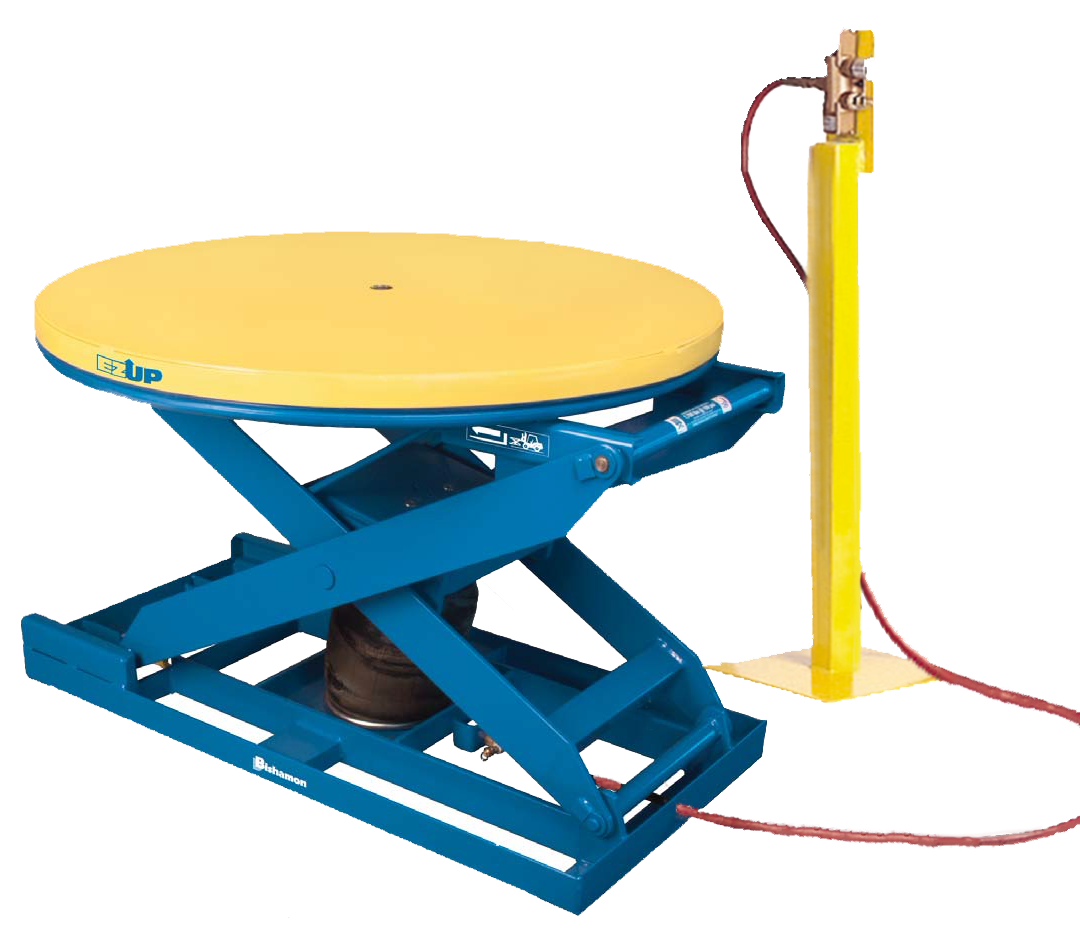

Features	Capacity: 1,500 lbs. @ 90 PSI / 1,700 lbs. @ 100 PSI Vertical Travel: 20 in. Max. Height: 30.4 in. Min. Height: 10.4 in. Approx. Ship Weight: 525 lbs. Firestone Airstroke Actuator raises and lowers the table platform to vertically position the load to the desired height. Hand or foot control is standard. Durable and attractive polyester powder coating adds life and superior corrosion resistance to the finish. Heavy-duty structural steel construction with rugged base frame. Entrapped rollers on base and platform for added stability. Hinged maintenance bars. Rotating models feature a secured center pivot with ball bearing that provides smooth, even rotation. High quality 3 position hand lever control allows easy operation. Clean design with minimum maintenance needed. Easily relocated with a fork truck.
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
