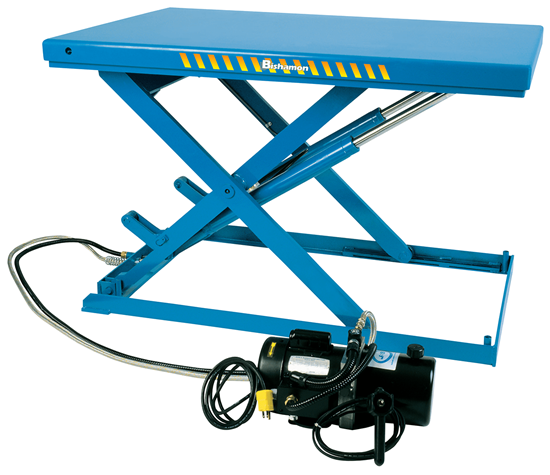

Bishamon Lo-Profile LX-200N Scissor Lift Table, Capacity 4,400 lbs

Manufacturer: Bishamon

Availability: In stock

SKU: LX-200N

Lead Time (subject to change, call to verify): typically ships in 16-20 business days

Platform Size *

Max. Lift Height *

Power Unit Voltage *

Table Accessories

$7,262.50

Qty:

Documents, Drawings, and Manuals

Brochure

Bishamon Lo-Profile LX Series Lift Table Brochure

Product Specifications

Attribute name	Attribute value
Features	Vertical Travel: 35.1 in. Max. Height: 39.4 in. Min. Height: 4.3 in. Time to Max. Height: 34 sec. (115V motor may increase time by up to 50%) Time to Min. Height: 26 sec. Approx. Ship Weight: 1,435 lbs. Power Units: 1 HP / 115V or 230V (single phase) 1 HP / 230V or 480V (three phase) Operator Control Voltage: 24V Approx. Ship Weight: 1,435 lbs. Extremely low collapsed heights of 2.9 in. to 4.3 in. provides access for rolling products, carts, or pallet trucks. Electric full-perimeter toe guard around the platform provides optimum operator safety. Heavy-duty construction with captured scissor rollers for maximum stability and baked enamel finish. High performance external electric-hydraulic remote power unit with 8 ft. long steel braided hydraulic hose. Hand held operator control unit with 8 ft. of cord. (foot operated control optional) Approach ramps available for easier access for carts and pallet trucks. (pallet truck ramps are longer and shallower)
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
