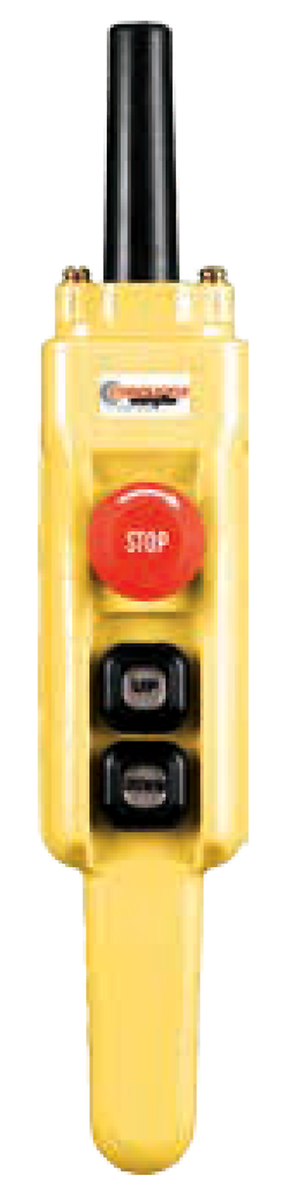

Conductix 3-Button 80 Series Pistol Grip Pendant, with E-Stop

Conductix 3-Button 80 Series Pistol Grip Pendant, with E-Stop

Conductix 3-Button 80 Series Pistol Grip Pendant, with E-Stop

Conductix 3-Button 80 Series Pistol Grip Pendant, with E-Stop and (2) Two-Speed Switches XA-COB81.5P

Manufacturer: Conductix-Wampfler

Availability: In stock

SKU: XA-COB81.5P

Lead Time (subject to change, call to verify): typically ships in 2-3 business days

Includes *

Cable Bushing

$131.04

Qty:

Documents, Drawings, and Manuals

Brochure

Conductix 80 Series Pendant Station Brochure

Manual

Conductix 80 Series Pendant Station Manual

Product Specifications

Attribute name	Attribute value
Features	Manufacturers Part Number: COB81.5P Approximate Shipping Weight: 0.82 lbs. Overall Dimensions (L x W x H): 14 in. (357 mm) x 3 in. (77.2 mm) x 3.3 in. (84 mm) Enclosure Material: High impact, yellow ABS enclosure Enclosure Rating: NEMA 4X (IP65); indoor or outdoor use Certifications: UL/cUL Listed for indoor use only Temperature Range: 5 to 160 degrees F (-15 to 70 degrees C) Contacts Electrical Specifications: 5A @ 120VAC & 240VAC, 2A @ 24VDC & 12VDC, & 0.4A @ 120VDC Strain Relief: Equipped to accommodate either internal or external strain relief cable. Button Legends: Standard button legends are included. E-Stop contact is 1 NO and 1 NC. Shock Resistant: Up to 100 g. Double-insulated to withstand 2500V. Two-piece design to simplify field wiring. Multi-diameter cable bushing inlet. Black silicone rubber booted buttons. Seals out dirt and moisture. Fasteners are a self-captive stainless steel with threaded inserts in the housing to prevent thread stripping.
