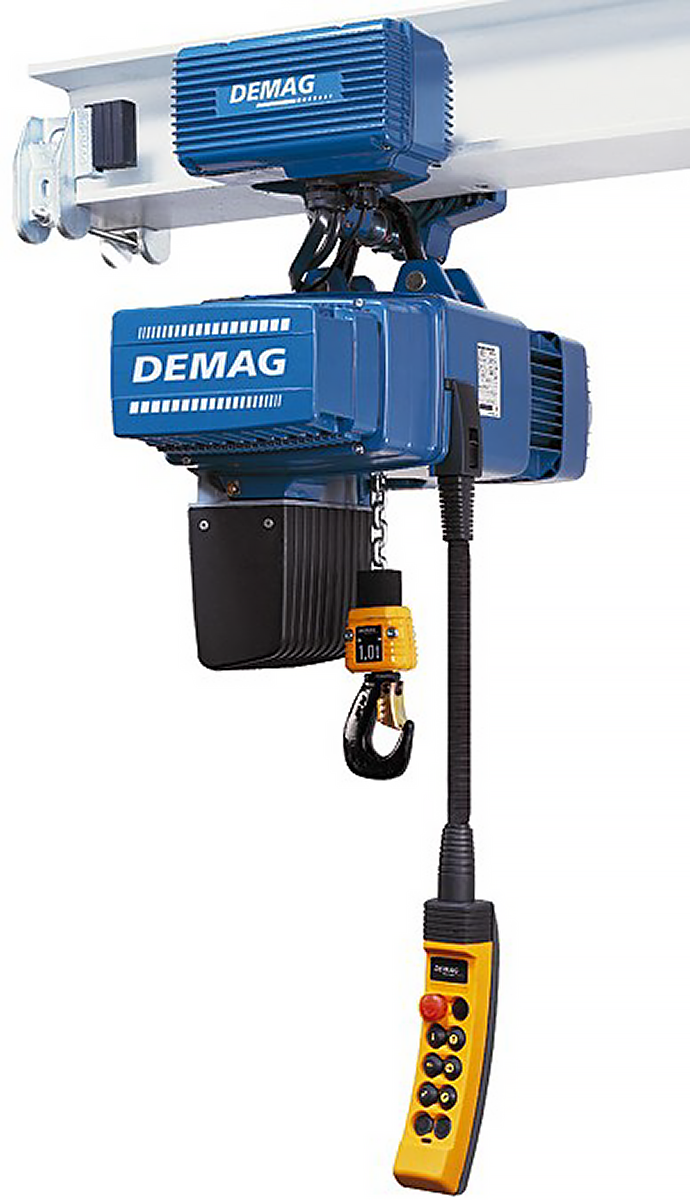

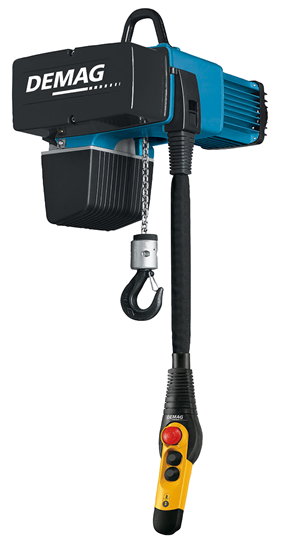

Demag DC-Com Electric Chain Hoist, 2200 lb Capacity

Manufacturer: Demag

Availability: In stock

SKU: DC-COM-10-1000

Lead Time (subject to change, call to verify): typically ships in 16-20 business days

Lift *

Voltage *

Hoist Suspension *

Lifting Speed *

Chain Container *

$3,276.00

Qty:

Documents, Drawings, and Manuals

Spec Sheet

Demag DC-Com Electric Chain Hoist Brochure

Manual

Demag DC-Com Electric Chain Hoist Manual

Product Specifications

Attribute name	Attribute value
Features	Capacity: 2200 lbs. Weight: 106 lbs. Headroom: 19.42 in. Lift Speed: 4/16 fpm 24V contactor control IP55 enclosure Upper and lower limit switches Two-Speed Operation - Standard with smooth starting and braking. Powder Coated Paint Finish - For outstanding surface protection. Single-Fall Design - For simple load handling of units up to 2,200 lbs. Chain Drive - Can be quickly replaced without having to remove any motor or gear parts. High Level of Safety - Brake arranged in front of the slipping clutch for added safety. Maintenance Monitoring - Standard elapsed operating time counter and IDAPSY diagnostics interface. Ergonomically Optimized Control Pendants - With DSC and DSE 10-C for fatigue-free operation. Height Adjustable Control Cable - Adjust the pendant to always be in the right working position for you. Reliable Operation Temperatures - From -4 °F to +113 °F (-20 °C to +45 °C) without any reduction in the duty factor (maximum of up to 140 °F / 60 °C). Service Cover Allows Direct Access to: Key plug-and-socket electrical connections - Control pendant height adjustment - Chain lubrication port
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of Origin	Germany
