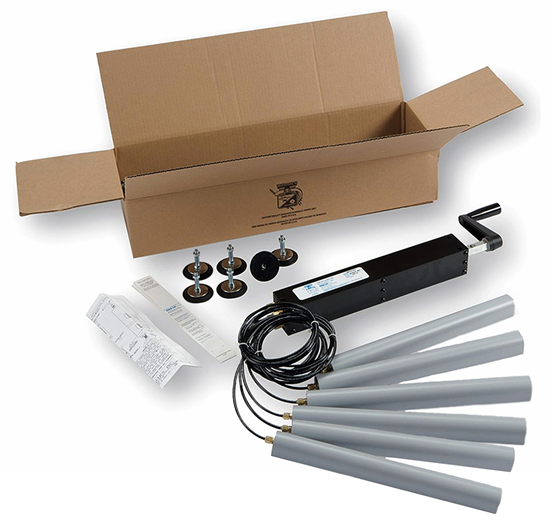

Dyna-Lift 6-Leg Height Adjustable System, 1000 lb Capacity

Manufacturer: Bucher Hydraulics

Availability: In stock

SKU: 6-D1A-06-16-S-CUST

Lead Time (subject to change, call to verify): typically ships in 50-60 business days

No. of Cylinders *

Six (6)

Power Type *

Cylinder Body Type *

D - Housing (4 | 1/4-20 Mount Holes) w/ A-Cylinder Inside

Cylinder/Pump Fitting Types *

Rod End Foot Type *

Height Adj. / Vert. Travel *

Hydraulic Tube Lengths *

Dyna-Lift Options

Aluminum Mounting Brackets (set of 12) [+$239.68]

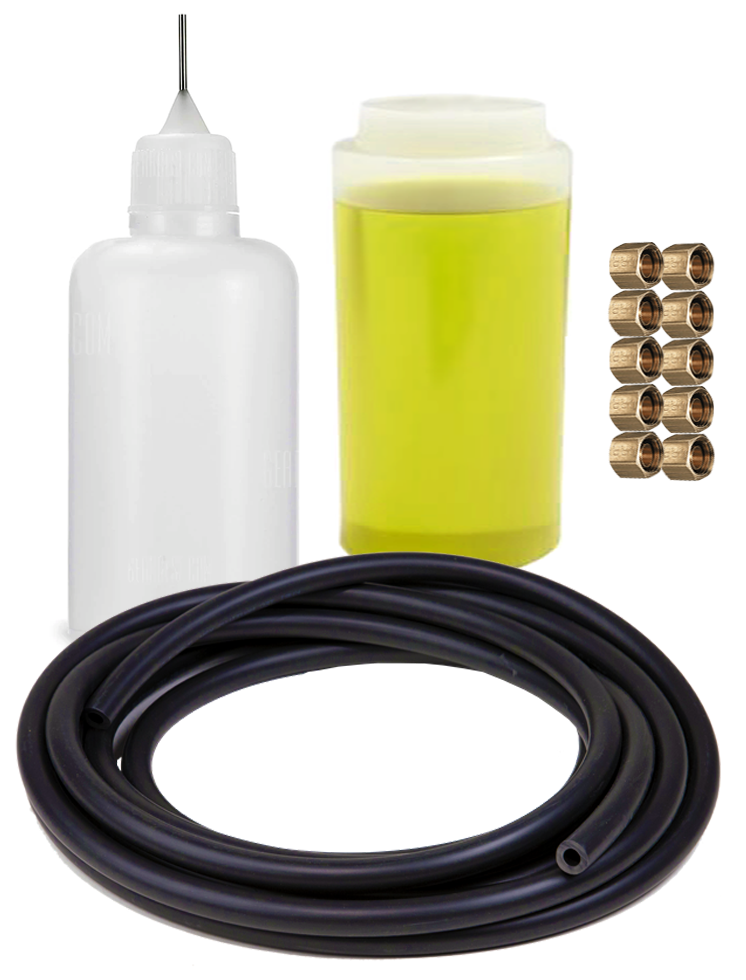

Recharge/Refill Kit (DH-16000) [+$101.86]

$1,317.04

Qty:

Documents, Drawings, and Manuals

Guide

Dyna-Lift Catalog and Selection Guide

Guide

Dyna-Lift System Mounting Guide

Instructions

Dyna-Lift System Recharge Instructions

MSDS

Dyna-Lift MSDS Multi-Purpose Oil

Instructions

Dyna-Lift Tube Shortening Instructions

Drawing

Dyna-Lift L-Bracket Drawing P/N DH-08000

Drawing

Dyna-Lift Handle Assembly Drawing DH-17100

Drawing

Dyna-Lift Rocker Switch Drawing DH-08400

Product Specifications

Attribute name	Attribute value
Features	Quickly convert a fixed height industrial machine, table or workbench to adjustable height; providing ergonomic workstations for worker safety and comfort. All kits are shipped fully charged ready to install. (Mounting hardware not included.) 166.7 pound capacity per leg on 6-post systems. Manual operation requires 5 handle rotations per inch of travel. Electric operation 17.4 inches per minute of travel. Flexible Tubing: 3/16 in. OD with 1 inch minimum bend radius. No reservoir. Fluid is maintained in the pump and piston areas. System pressure is 625 psi nominal -2,500 psi burst/max. Uses colorless, odorless, non-staining, non-toxic hydraulic fluid. See MSDS above. Controls: Manual systems have a fold-away handle crank, electric systems have an up/down 12VDC, 30mA rocker switch with 81 inches of control cord. Powder coated finish on pump and cylinder D-housing. Exposed cylinder rod-ends are steel with zinc plating. Electric Pump Motor: 115VAC, 60Hz, single-phase, 87 rpm, 2.4 fla, Regular amperage draw 1.6 amps, standard 3-pin plug with 6 foot power cord, UL Recognized and CSA Certified. NOTE: Single acting cylinders, power up and gravity down. Approximately 20 pounds of weight per cylinder to retract properly.
Lift Table/Kit Type	6 leg / 6 post
Capacity	1/2-ton / 453.5 kg
Shipping Specs	72 lbs., 48in L x 12in W x 10in H
Country of Origin	Made in the USA
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
