Dyna-Lift Electric Height Adjustable System, 6-Leg, 16in Travel, 1000lb Capacity, 6E-D1A-16-S

Manufacturer: Bucher Hydraulics

Availability: In stock

SKU: 6E-D1A-16-S

Lead Time (subject to change, call to verify): typically ships in 50-60 business days

Dyna-Lift Options

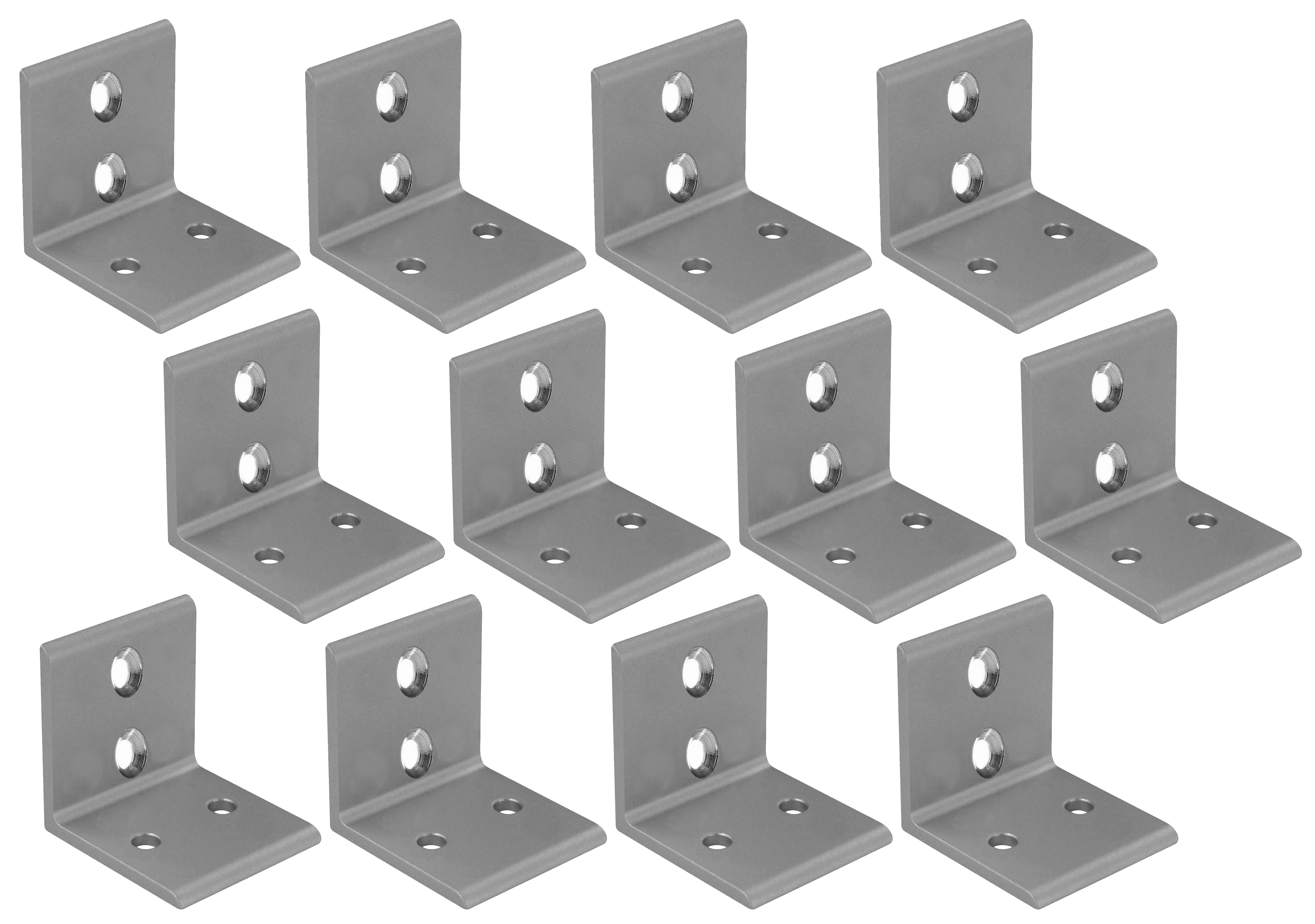

Aluminum Mounting Brackets (set of 12) [+$225.30]
Recharge/Refill Kit (DH-16000) [+$101.86]

Includes *

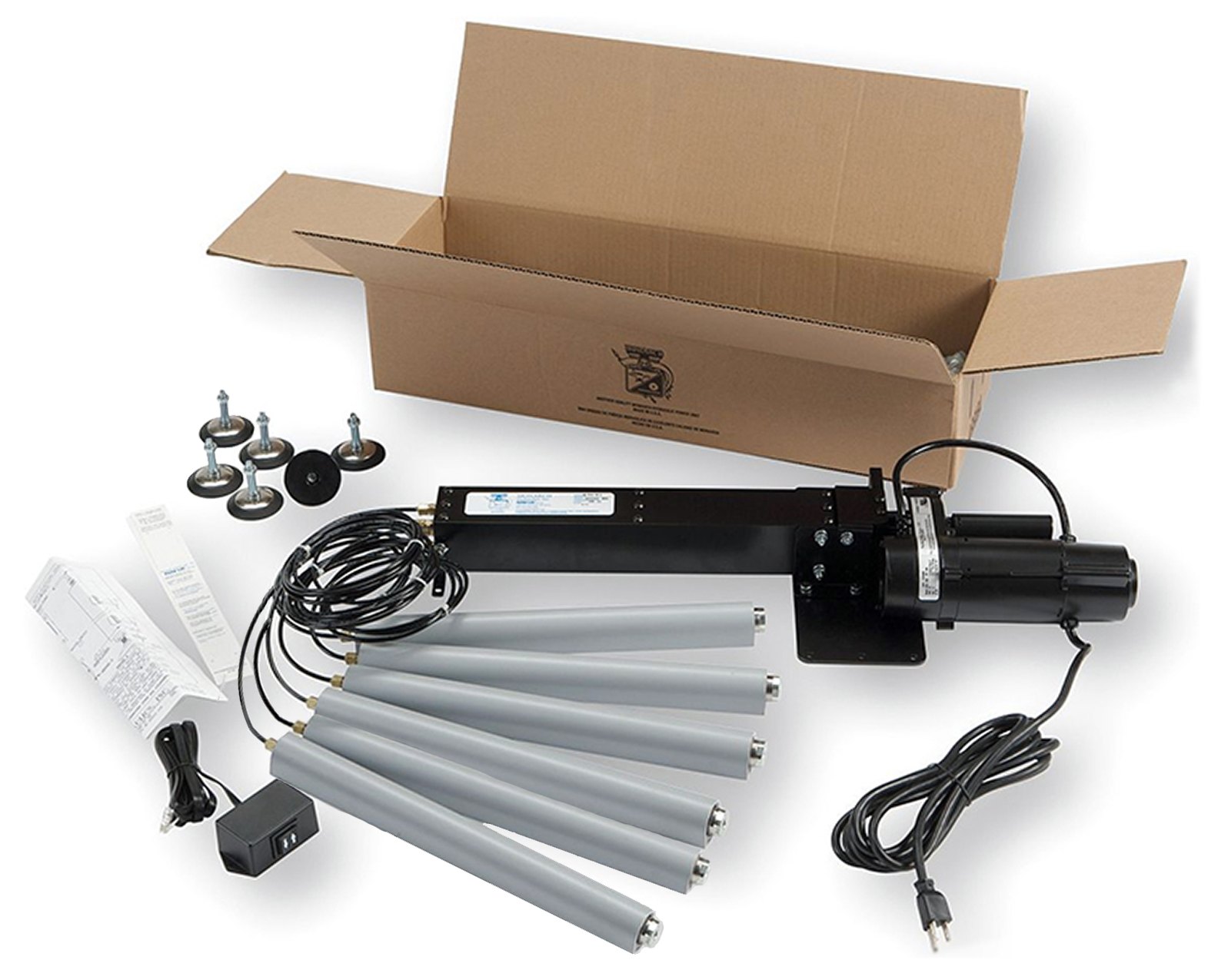

Six Cylinders, Electric Pump, Rocker Switch, D-Housing (4, 1/4-20 Mount Holes) w/ A-Cylinder Mounted Inside, Straight Fittings, 6ea-3/8in Adapters/Foot Glides, 16-in Vert. Travel, Hose Lengths: (3)-96in, (3)-120in, Factory Pre-Charged with Instructions.

$1,911.45

Qty:

Documents, Drawings, and Manuals

Guide

Dyna-Lift Catalog and Selection Guide

Guide

Dyna-Lift System Mounting Guide

Instructions

Dyna-Lift System Recharge Instructions

MSDS

Dyna-Lift MSDS Multi-Purpose Oil

Instructions

Dyna-Lift Tube Shortening Instructions

Drawing

Dyna-Lift L-Bracket Drawing P/N DH-08000

Instructions

Dyna-Lift Repacking Seal Kit Instructions

Drawing

Dyna-Lift Rocker Switch Drawing DH-08400

Product Specifications

Attribute name	Attribute value
Features	Quickly convert a fixed height industrial machine, table or workbench to adjustable height; providing ergonomic workstations for worker safety and comfort. All kits are shipped fully charged ready to install. (Mounting hardware not included.) 166.6 pound capacity per leg on 6-post systems. 12VDC, 30mA Rocker switch with 81 inches of control cord provides smooth quiet up/down control; 17.4 inches per minute of travel. Flexible Tubing: 3/16 in. OD with 1 inch minimum bend radius. No reservoir. Fluid is maintained in the pump and piston areas. System pressure is 625 psi nominal -2,500 psi burst/max. Uses colorless, odorless, non-staining, non-toxic hydraulic fluid. See MSDS above. Powder coated finish on pump and cylinder D-housing. Exposed cylinder rod-ends are steel with zinc plating. Electric Pump Motor: 115VAC, 60Hz, single-phase, 87 rpm, 2.4 fla, Regular amperage draw 1.6 amps, standard 3-pin plug with 6 foot power cord, UL Recognized and CSA Certified. NOTE: Single acting cylinders, power up and gravity down. Approximately 20 to 30 pounds of weight per cylinder to retract properly.
Lift Table/Kit Type	6 leg / 6 post
Height Adj. / Vert. Travel	16 in / 40.6 cm
Capacity	1/2-ton / 453.5 kg
Voltage	115-1-60 (single phase)
Shipping Specs	82 lbs., 44in L x 12in W x 10in H
Country of Origin	Made in the USA
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
