Dyna-Lift Manual Height Adjustable System, 6-Leg, 16in Travel, 1000lb Capacity, 6M-D1A-16-S

Availability: In stock

SKU: 6M-D1A-16-S

Lead Time (subject to change, call to verify): typically ships in 50-60 business days

Dyna-Lift Options

Includes *

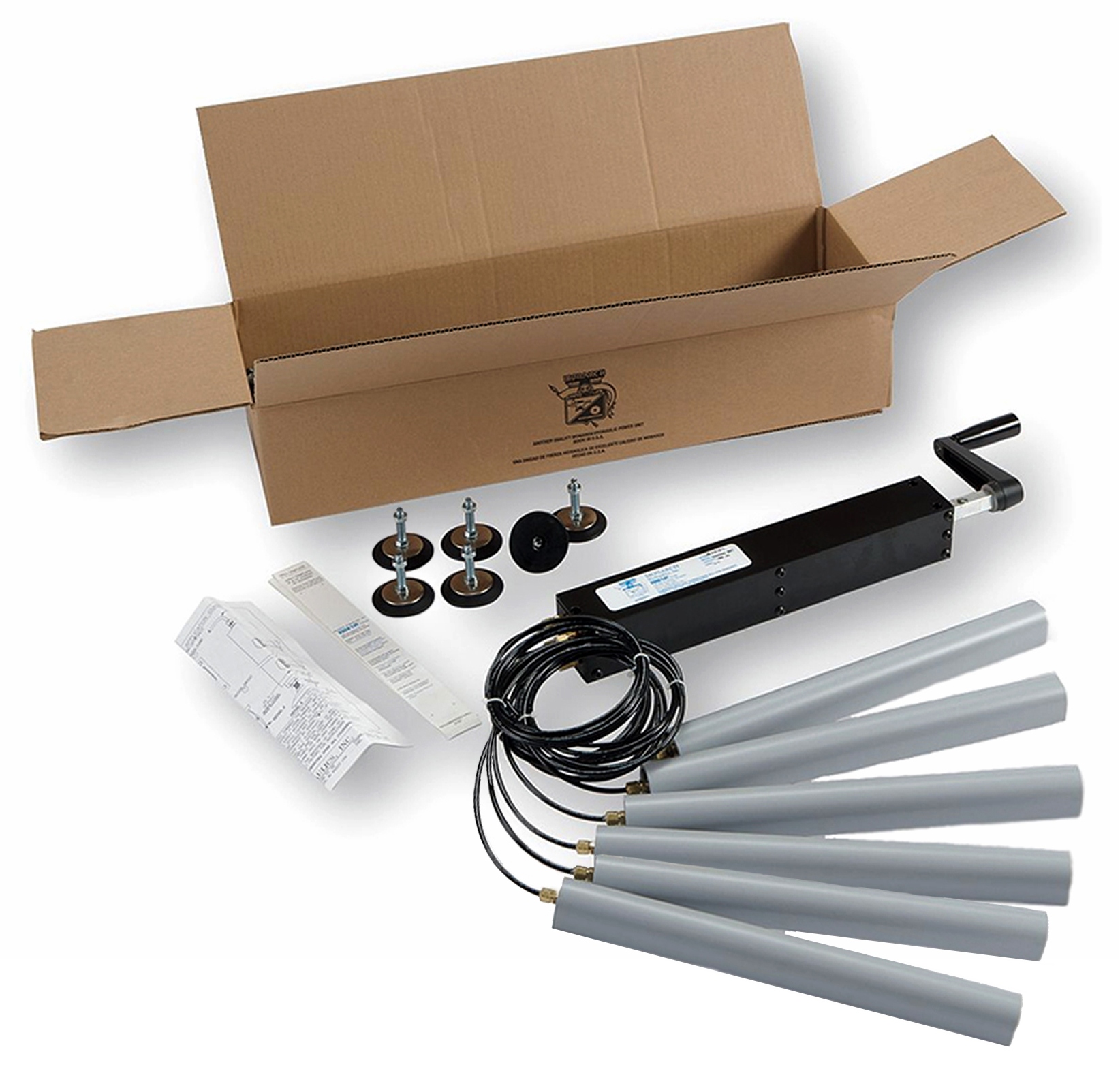

Six Cylinders, Manual Pump, Fold-Away Handle Crank, D-Housing (4, 1/4-20 Mount Holes) w/ A-Cylinder Mounted Inside, Straight Fittings, 6ea-3/8in Adapters/Foot Glides, 16-in Vert. Travel, Hose Lengths: (3)-96in, (3)-120in, Factory Pre-Charged with Instructions.

$1,523.17

Qty:

Documents, Drawings, and Manuals

Guide

Dyna-Lift Catalog and Selection Guide

Guide

Dyna-Lift System Mounting Guide

Instructions

Dyna-Lift System Recharge Instructions

MSDS

Dyna-Lift MSDS Multi-Purpose Oil

Instructions

Dyna-Lift Tube Shortening Instructions

Drawing

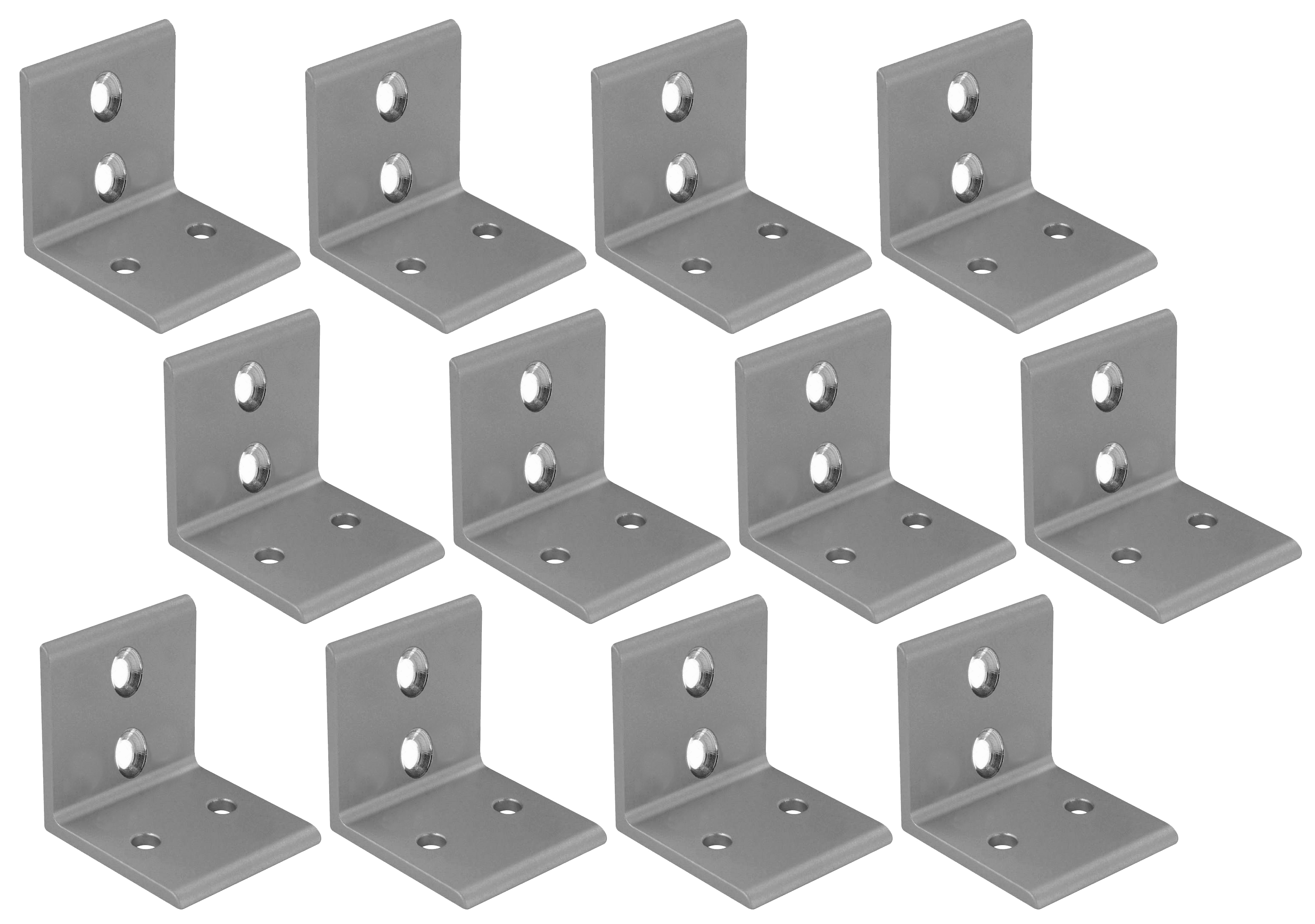

Dyna-Lift L-Bracket Drawing P/N DH-08000

Instructions

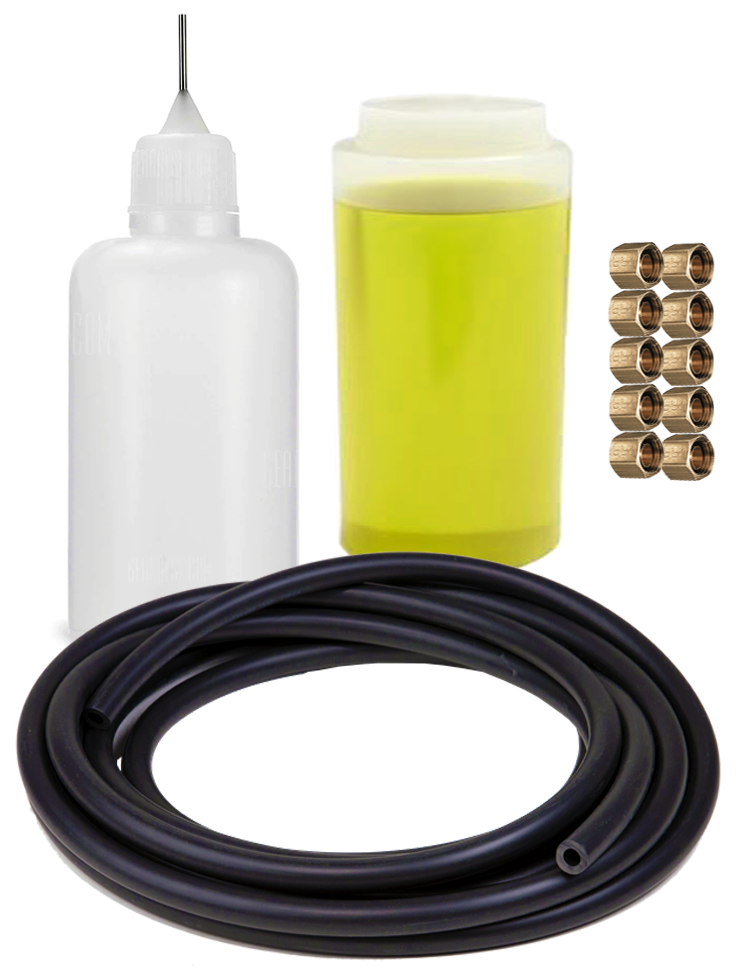

Dyna-Lift Repacking Seal Kit Instructions

Drawing

Dyna-Lift Handle Assembly Drawing DH-17100

Product Specifications

Attribute name	Attribute value
Features	Quickly convert a fixed height industrial machine, table or workbench to adjustable height; providing ergonomic workstations for worker safety and comfort. All kits are shipped fully charged ready to install. (Mounting hardware not included.) 166.6 pound capacity per leg on 6-post systems. Smooth quiet operation. Manual fold-away handle requires 5 handle rotations per inch of travel. Flexible Tubing: 3/16 in. OD with 1in. minimum bend radius. No reservoir. Fluid is maintained in the pump and piston areas. System pressure is 625 psi nominal -2,500 psi burst/max. Uses colorless, odorless, non-staining, non-toxic hydraulic fluid. See MSDS above. Powder coated finish on pump and cylinder D-housing. Exposed cylinder rod-ends are steel with zinc plating. NOTE: Single acting cylinders, power up and gravity down. Approximately 20 to 30 pounds of weight per cylinder to retract properly.
Lift Table/Kit Type	6 leg / 6 post
Height Adj. / Vert. Travel	16 in / 40.6 cm
Capacity	1/2-ton / 453.5 kg
Shipping Specs	65 lbs., 44in L x 12in W x 10in H
Country of Origin	Made in the USA
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
