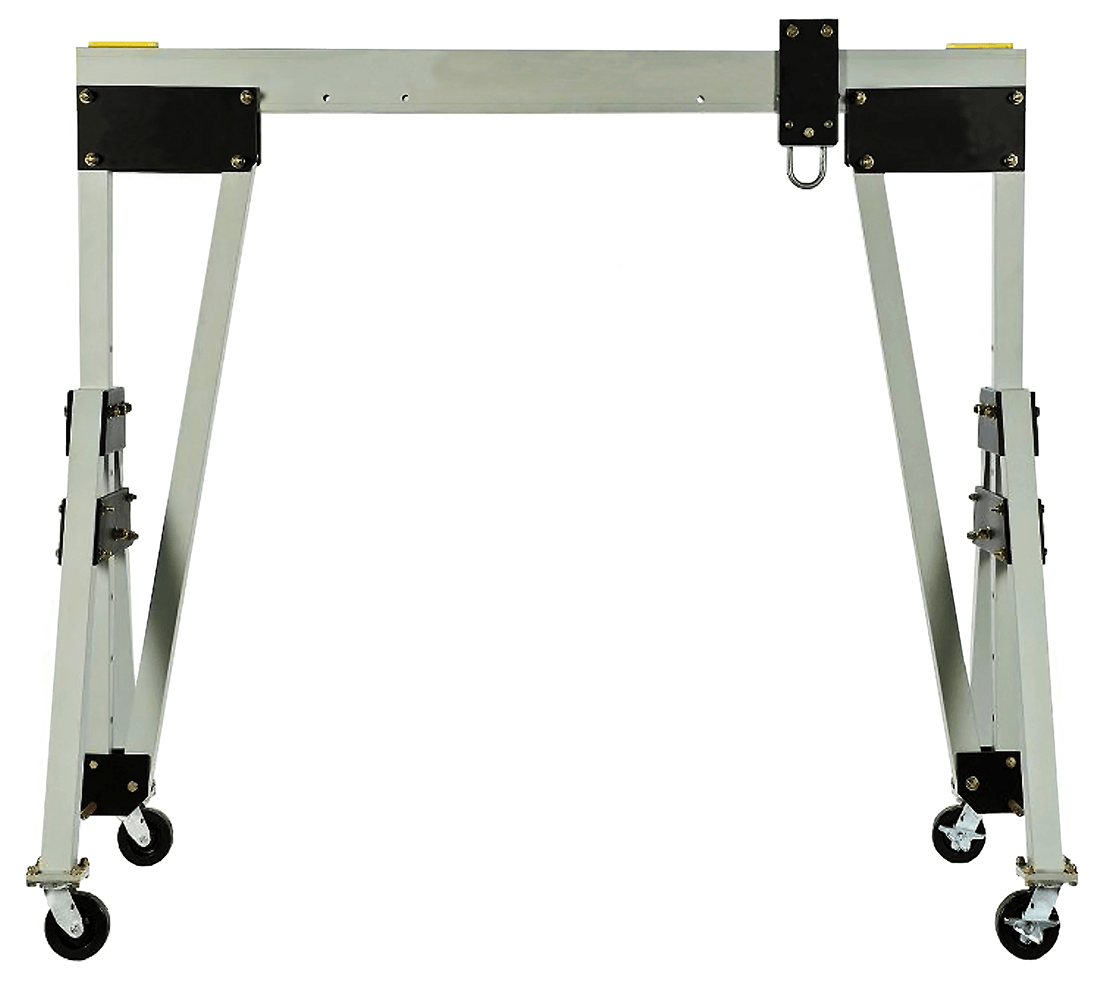

eme Adjustable Height Aluminum Gantry Crane

eme Adjustable Height Aluminum Gantry Crane

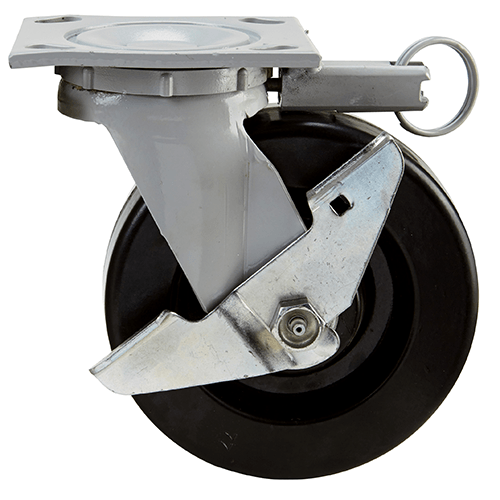

eme Gantry Crane Caster

eme Aluminum Box Beam

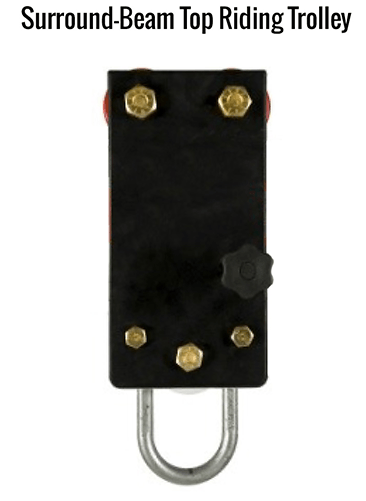

eme Surround-Beam Top Riding Trolley

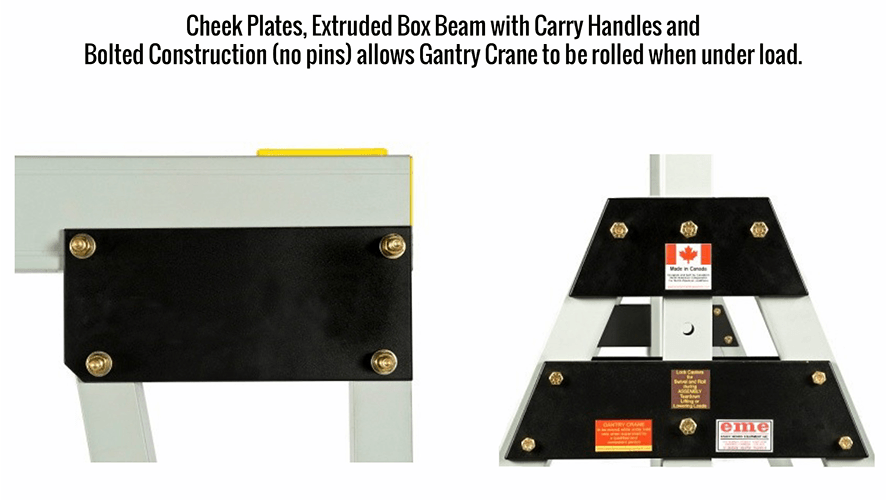

eme Gantry Crane Bolted Cheek Plates

eme Aluminum Gantry Crane, 2-Ton, Ht. 82-122 in, Span 10 ft

Manufacturer: eme

Availability: In stock

SKU: 4400R

Lead Time (subject to change, call to verify): typically ships in 5-7 business days

$6,451.20

Qty:

Documents, Drawings, and Manuals

Specs

eme Aluminum Gantry Crane Specs

Product Specifications

Attribute name	Attribute value
Features	Capacity: 2-Ton, 4,400 lbs. / 2,000 kg. Proof Load: 6,600 lbs. / 3,000 kg. Span: 10 ft. Clear Span: 7 ft. Overall Height: 138 in. Adjustable Height Range: 82-122 in. (8 in. increments) Weight: 350 lbs. Lightweight and Portable - can be moved when under FULL LOAD! Quick and Easy two-wrench assembly from the ground up – no rigging equipment required. ALL-Aluminum-Alloy Construction (Legs, Beam, Beam Trolley). All-Bolted Construction (No Pins) for the strongest assembly. Legs and End Plates bolted for solid leg structure - tied to beam with 18 inch Cheek Plates and Gr. 9 plated (chromate) fasteners. Engineered extruded hollow Aluminum Box Beam (proprietary design) that is stronger and lighter than traditional I-Beams. Aluminum billet carry handles make it easy and safe to carry beams. Beam Lengths from 6 to 30 feet (custom heights also available). Adjustable height in 8 inch increments. Simple two-bolt height adjustment with Operator-Friendly Handles. Includes Crosby Shackles and Master Links. Includes Locking "Surround-Beam" Top Riding Trolley that prevents it from derailing. Rubber Rollers reduce beam damage and rolling resistance. Includes Locking Casters (independently for swivel/roll), so crane can be steered when moved. Struts and Leg Extrusions are sized to fit Gantry Crane Capacity, Lift Height, and Beam Length. Proof Load tested to 150% of Lift Capacity with a Certificate of Test. Certificate of Test shows: Lift Capacity, Proof Load, Date of Certificate, and Serial Number. Supplied with an Engineer's Stamped Drawing specific to Model Series or Custom Model.
Warranty	10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
