Endo EWF-120 Spring Balancer Capacity 231.5-264.5 lbs

Manufacturer: ENDO

Availability: In stock

SKU: XA-EWF-120

Lead Time (subject to change, call to verify): typically ships in 40-50 business days

Call for Availability - 314-884-8884 *

Products not in stock are made to order. (Add 6-8 weeks to lead time)

$2,856.44

Qty:

Documents, Drawings, and Manuals

Brochure

Endo Series Tool Balancer Brochure

Manual

Endo Balancer EWF-9 to EWF-70 Manual

Dimensions

Endo Series Tool Balancer Dimensions

Product Specifications

Attribute name	Attribute value

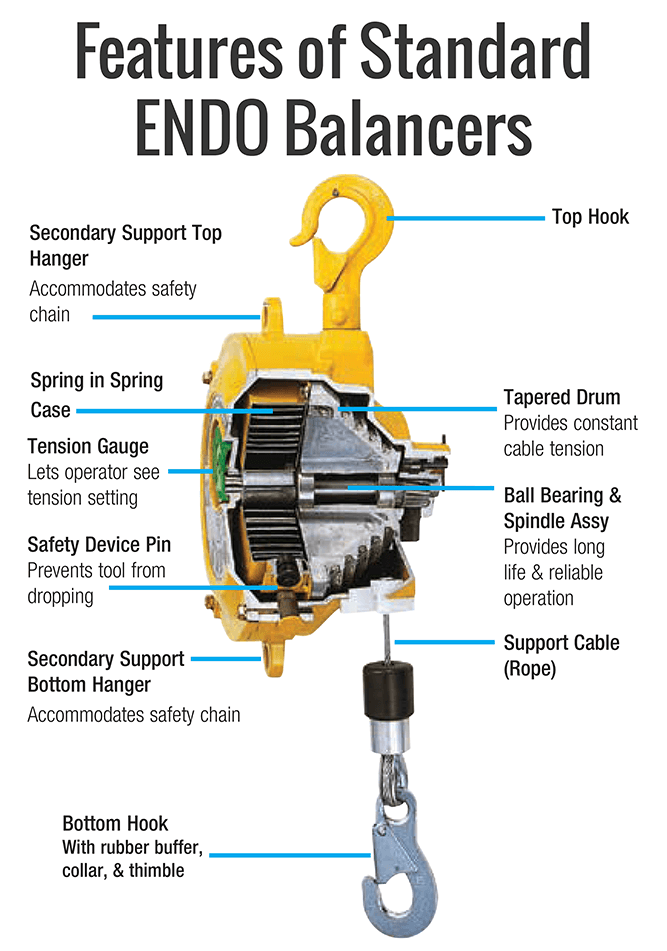

Features	Capacity Range: 231.5 to 264.5 lbs. (105.0 to 120.0 kg) Cable Travel: 6.56 ft. (2.0 m) Cable Diameter: 0.187 in. (4.76 mm) Unit Weight: 61.7 lbs. (28.0 kg) Width: 10.5 in. (266 mm) Depth: 11.8 in. (299 mm) Length (hook to hook I.D.): 19.4 to 98.1 in. (492.7 to 2492 mm) Color: Safety Yellow Cable Material: Wire Rope (steel) Top Hook: Aluminum forged swivel hook with safety latch. Bottom Hook: Steel hook with safety latch and rubber buffer collar. Secondary Support: Includes top and bottom support eyelets to accommodate a safety chain. Fully enclosed, high impact cast aluminum housing. Tension Gauge on front of device lets the operator see the tension setting. Drum Lock mechanism available to lock the drum when replacing a tool. Fall-Arrest device prevents tool from dropping in the unlikely event that a spring breaks. Plug-Type cable set for easy cable replacement without dismantling the balancer. Easy and precise worm gear system spring adjustment. Zero-Gravity tool holding with no drifting or strain. Tapered drum, quality springs, and ball bearings provide smooth cable travel throughout the stroke. CE mark available (European Conformity) Worm Gear Spring Tension Adjustment: Insert socket wrench in back of unit and turn clockwise to increase tension and counterclockwise to decrease tension (factory preset to the midrange of the rated capacity). Watch Video Here Choosing the Right Spring Balancer: Size the balancer to carry the total weight of the tool and all accessories to be balanced. Use the upper end of the capacity range of the balancer when possible. For example, if the total tool weight is 10.5 lbs, a balancer with a capacity range of 5.5-11.0 lbs would be a better choice than one with a range of 9.9-19.8 lbs. Choose the cable travel length that best suits your application.
Warranty	18-Month Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of Origin	Japan
