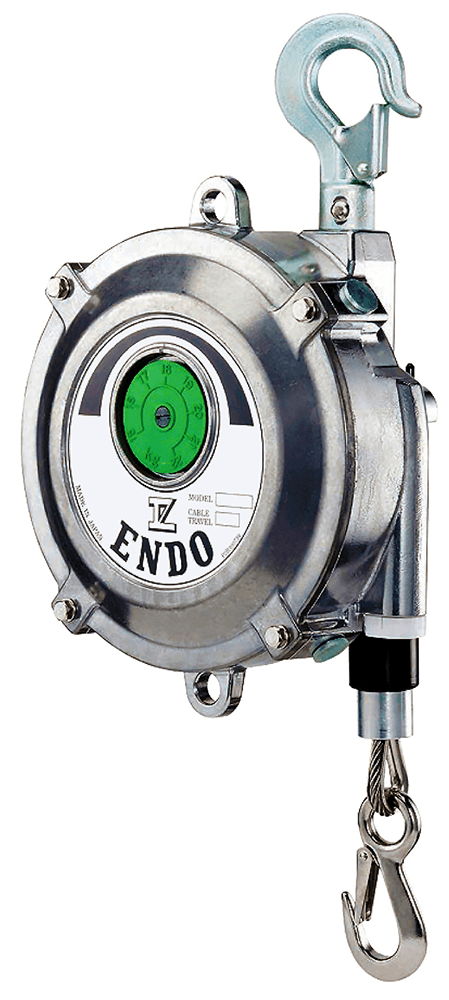

Endo EWF-60X Food Grade Spring Balancer Capacity 110.2-132.3 lbs

Manufacturer: ENDO

Availability: In stock

SKU: XA-EWF-60X

Lead Time (subject to change, call to verify): typically ships in 40-50 business days

Call for Availability - 314-884-8884 *

Products not in stock are made to order. (Add 6-8 weeks to lead time)

$2,131.29

Qty:

Documents, Drawings, and Manuals

Brochure

Endo Series Tool Balancer Brochure

Manual

Endo Balancer EWF-9 to EWF-70 Manual

Dimensions

Endo Series Tool Balancer Dimensions

Product Specifications

Attribute name	Attribute value
Features	Capacity Range: 110.2 to 132.3 lbs. (50.0 to 60.0 kg) Cable Travel: 4.93 ft. (1.5 m) Cable Diameter: 0.188 in. (4.8 mm) Unit Weight: 24.5 lbs. (11.1 kg) Width: 8.7 in. (220 mm) Depth: 7.4 in. (187 mm) Length (hook to hook I.D.): 16.9 to 76.0 in. (429 to 1930 mm) Color: Unpainted Aluminum Cable Material: Stainless Steel Wire Rope Top Hook: Zinc plated hook and pins. Bottom Hook: Stainless steel hook, plug, rivet, bolts, and screws. Secondary Support: Includes top and bottom support eyelets to accommodate safety chains. The ENDO Series X is an eco-friendly tool balancer. The ultimate solution when particulates from the standard exterior balancer finish might contaminate food or sensitive assemblies. Buffed and barrel-polished aluminum casing and cover. Synthetic food-grade grease (H1 grade) on the spring. Drum Lock mechanism available to lock the drum when replacing a tool. Fall-Arrest device prevents tool from dropping in the unlikely event that a spring breaks. Plug-Type cable set for easy cable replacement without dismantling the balancer. Easy and precise worm gear system spring adjustment. Zero-Gravity tool holding with no drifting or strain. Tapered drum, quality springs, and ball bearings provide smooth cable travel throughout the stroke. Worm Gear Spring Tension Adjustment: Insert socket wrench in back of unit and turn clockwise to increase tension and counterclockwise to decrease tension (factory preset to the midrange of the rated capacity). Watch Video Here Choosing the Right Spring Balancer: Size the balancer to carry the total weight of the tool and all accessories to be balanced. Use the upper end of the capacity range of the balancer when possible. For example, if the total tool weight is 10.5 lbs, a balancer with a capacity range of 5.5-11.0 lbs would be a better choice than one with a range of 9.9-19.8 lbs. Choose the cable travel length that best suits your application.
Warranty	18-Month Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of Origin	Japan
