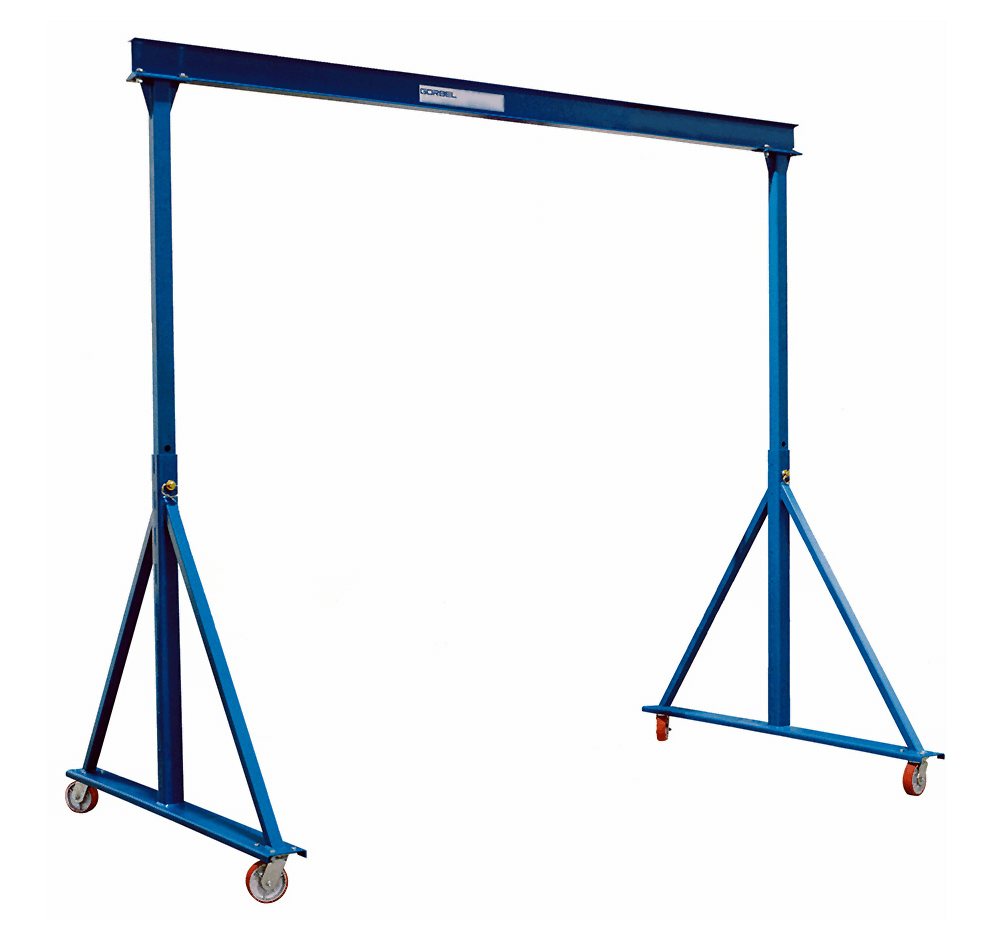

Gorbel Adjustable Height Gantry Crane, 2-Ton, Ht. 12-15 ft, Span 15 ft

Manufacturer: Gorbel

Availability: In stock

SKU: AG-2-12/15-15

Lead Time (subject to change, call to verify): typically ships in 13-16 business days

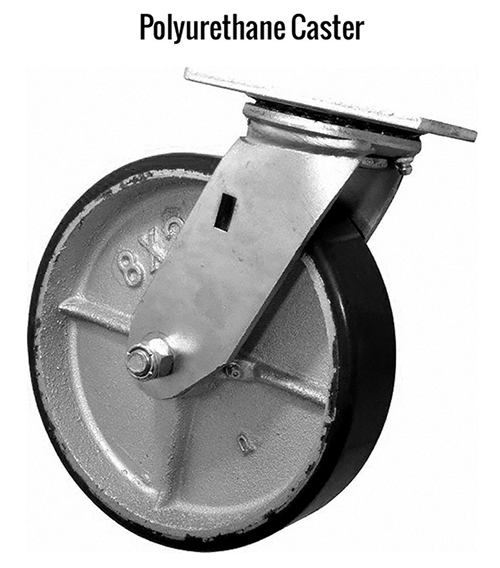

Caster Type *

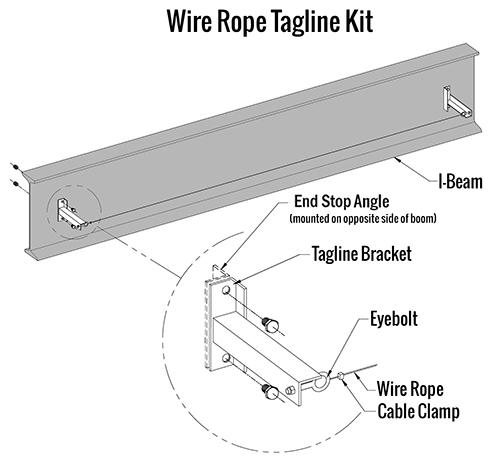

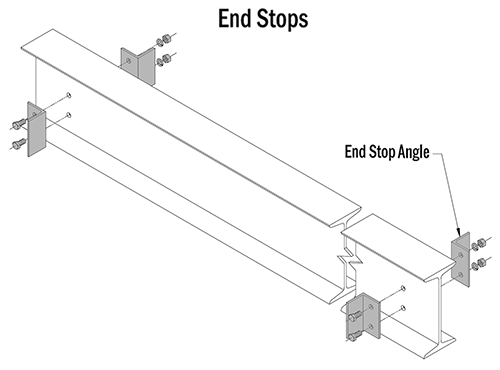

Crane Accessories

$6,031.86

Qty:

Documents, Drawings, and Manuals

Brochure

Gorbel Gantry Crane Brochure

Manual

Gorbel Gantry Crane Manual

Standards

Gorbel Crane
Design Standards

Warranty

Gorbel Cranes
10-Year Warranty

Product Specifications

Attribute name	Attribute value
Features	Capacity: 2-Ton Span: 15 ft. Height Under Boom (HUB): 12 to 15 ft. (adjustable) Overall Height: 15 ft. 10-3/8 in. (max) I-Beam Size: W10 @ 26 lbs/ft I-Beam Depth: 10-3/8 in. I-Beam Flange Width: 5-3/4 in. Clear Span: 13 ft. 8-5/8 in. Gantry Tread: 6 ft. 6 in. Crane Material: Steel Shipping Weight (Overall Weight): 1,057 lbs. Provides the most flexible lifting solution of any style gantry crane. Easily adjusted to provide different lifting heights. Bolted beam to upright connection ensures safety. Molded phenolic casters are standard and allow for easy movement. Square tubing uprights, knee braces, and channel base provides stable lifting and movement. All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications. All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
Warranty	10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of Origin	Made in the USA
