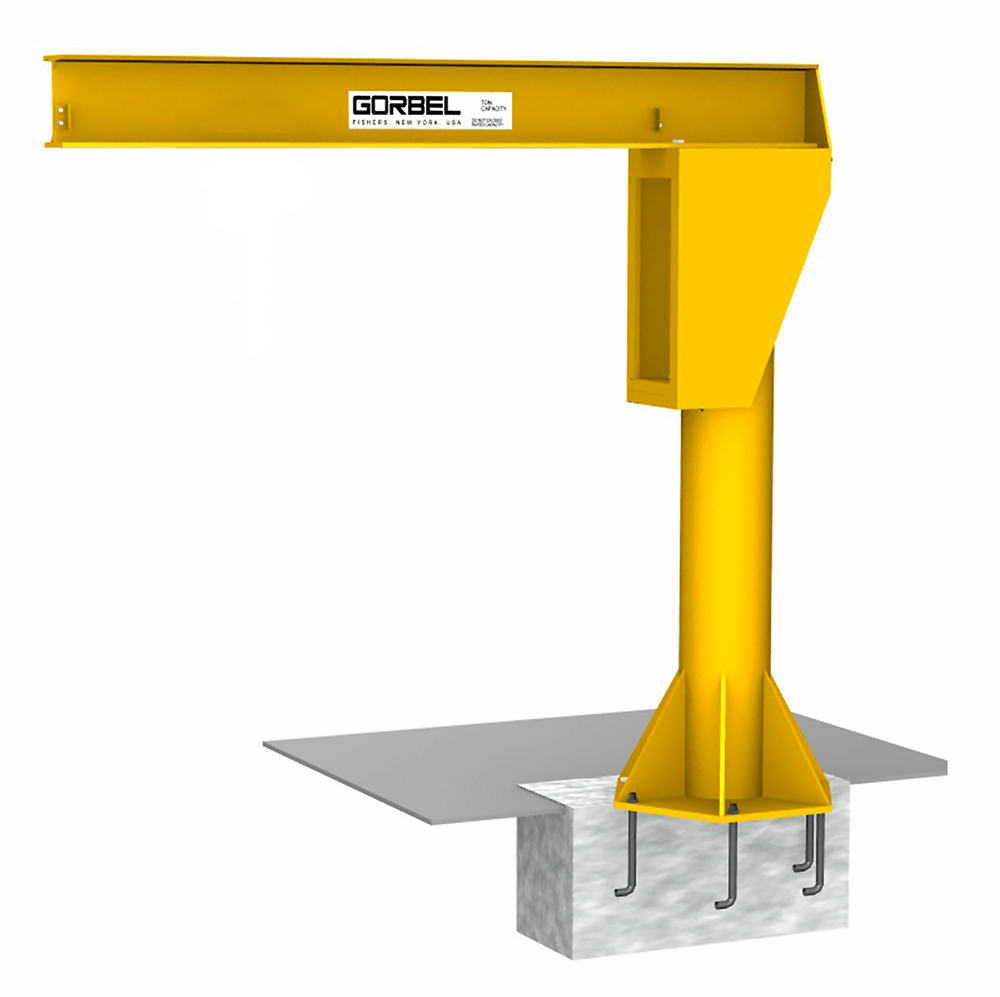

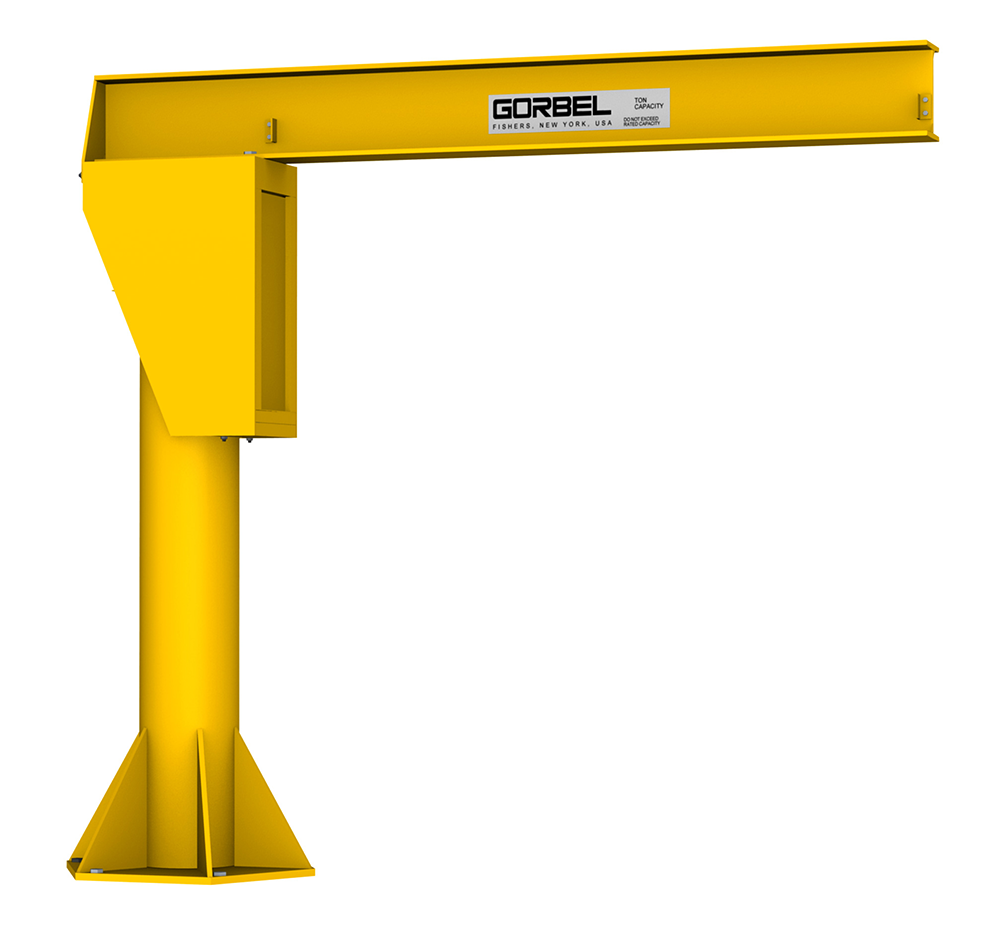

Gorbel Free Standing Jib Crane, 1-Ton, Ht. 14 ft, Span 10 ft

Manufacturer: Gorbel

Availability: In stock

SKU: FS300-12-W8-2000-14-10

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Festoon Conductor Type *

Festoon Options - Electrical *

Festoon Options - Pneumatic *

Crane Accessories

Extra Touch Up Paint [+$14.23]
Rotation Stops (req. field welding) [+$88.22]

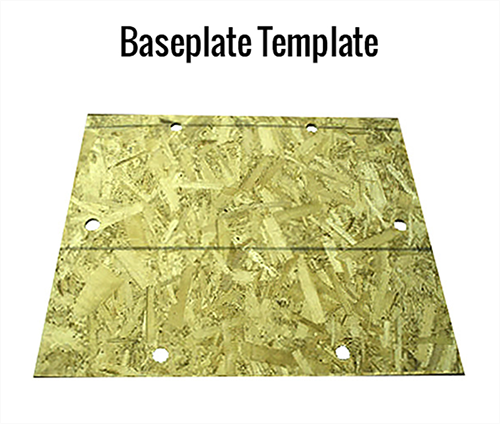

Baseplate Template [+$132.33]
Anchor Bolts - 1.25 in. (6 ea.) [+$412.66]

$6,441.74

Qty:

Documents, Drawings, and Manuals

Brochure

Gorbel Free Standing
I-Beam Jib Brochure

Manual

Gorbel Free Standing
I-Beam Jib Manual

Standards

Gorbel Crane
Design Standards

Warranty

Gorbel Cranes
10-Year Warranty

Product Specifications

Attribute name	Attribute value

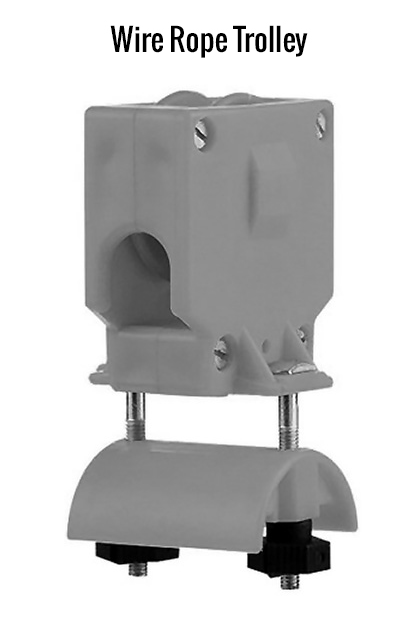

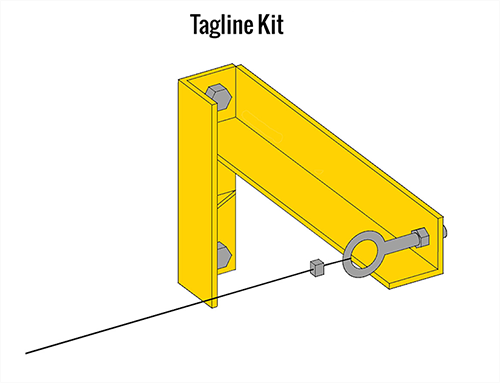

Features	Capacity: 2,000 lbs. Span: 10 ft. Height Under Boom (HUB): 14 ft. Overall Height (Crane Only): 14 ft. 8 1/8 in. Foundation Width: 5 sq. ft. Foundation Depth: 4 ft. Pipe Size: 12 in. @ 33.38 lbs/ft. Beam Size: W8 @ 18 lbs/ft. Beam Flange Width: 5 1/4 in. Overturning Moment: 26.1 K-Ft Axial Load: 3.77 Kips Hoist & Trolley Allowance: 300 lbs. Anchor Bolt Load: 4.96 Kips/Bolt Baseplate Thickness at Anchor Bolt: 1 1/4 in. Coverage: 360° Circular Rotation Shipping Weight (Overall Weight): 1,045 lbs. Allows operators to position loads precisely, effortlessly, and efficiently. Precision tapered roller bearings in top pivot and trunnion assemblies provide smooth operation and long life. Full supporting triangular baseplate gussets are used instead of struts to minimize crane deflection and make positioning loads easier. Independent head assembly installs separately for ease of installation. In-head totally enclosed, bottom entry collector assembly allows the option of easily adding power to the hoist for 360° rotation at the time of or after purchase. Festoon Options includes: Entry Collector or Air Swivel, Cable or Air Hose, Tagline Kit, and Wire Rope Trolleys. Special foundations may be required; crane drawing will have foundation requirements. All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications. All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
Warranty	10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of Origin	Made in the USA
