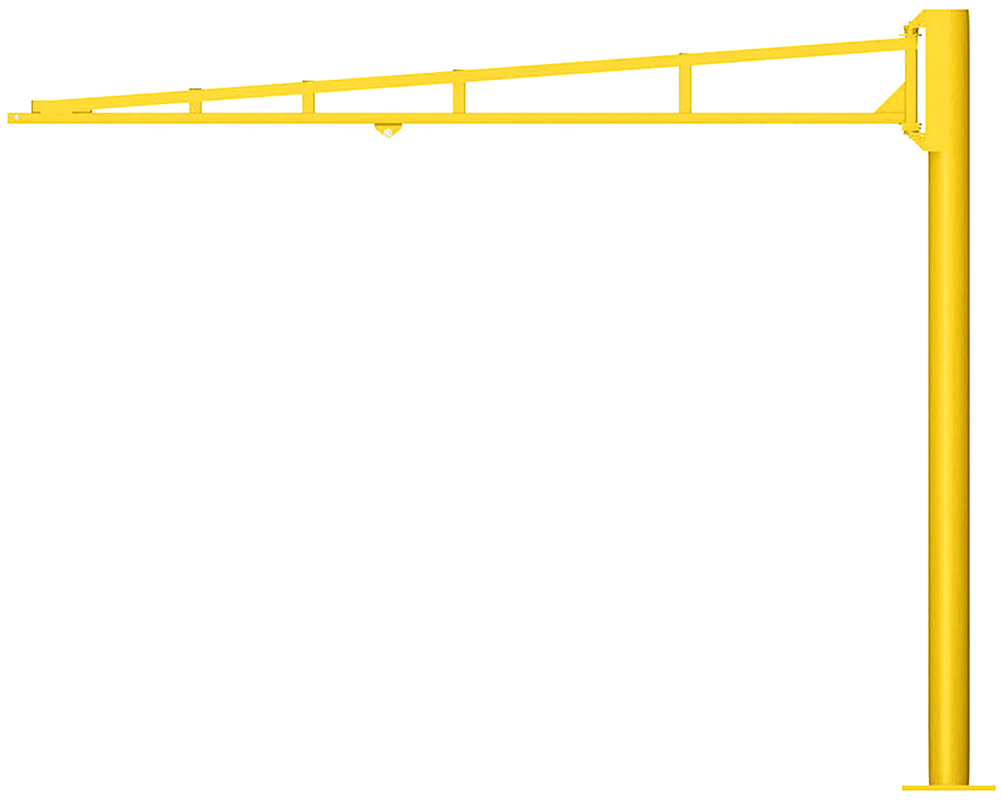

Gorbel Free Standing Tool Balancer Jib Crane, 150 lbs, Ht. 8 ft, Span 6 ft

Manufacturer: Gorbel

Availability: In stock

SKU: TSJ150-FS-150-8-6

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

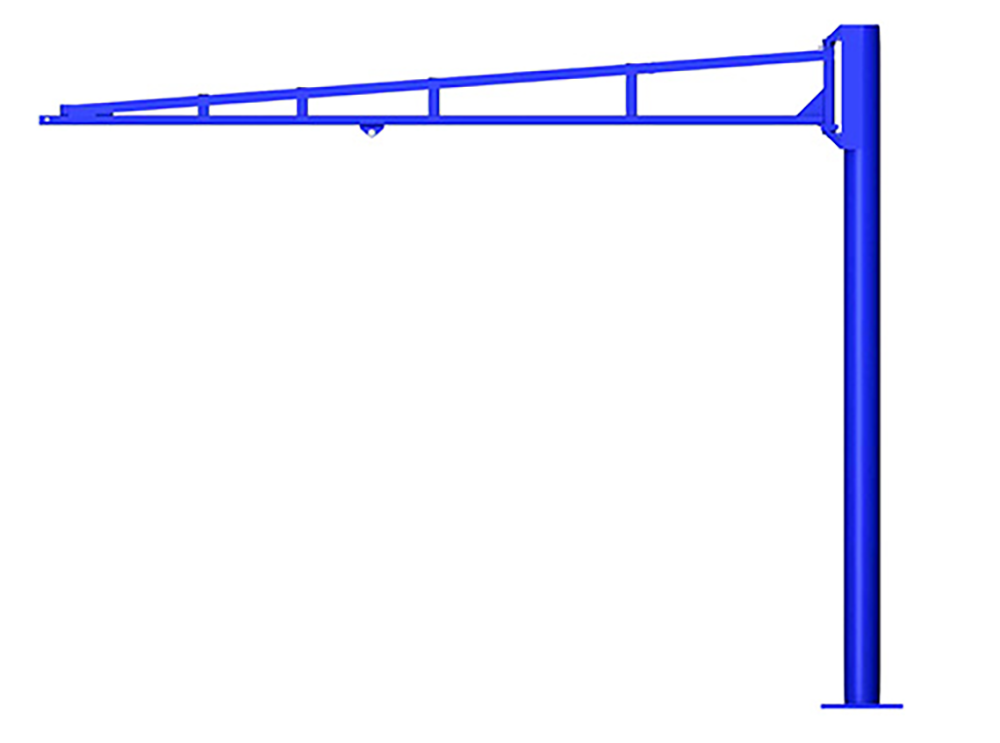

Color *

Festoon Conductor Type *

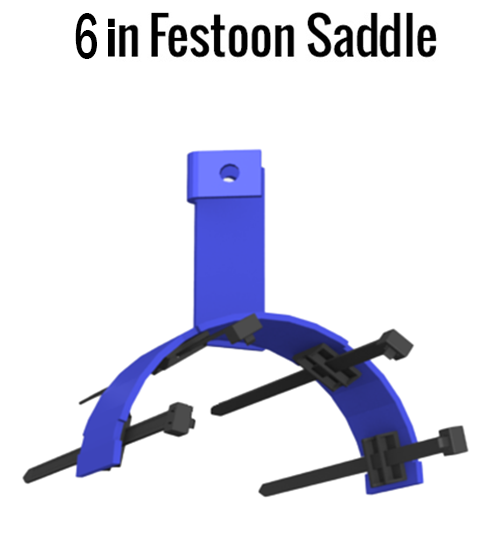

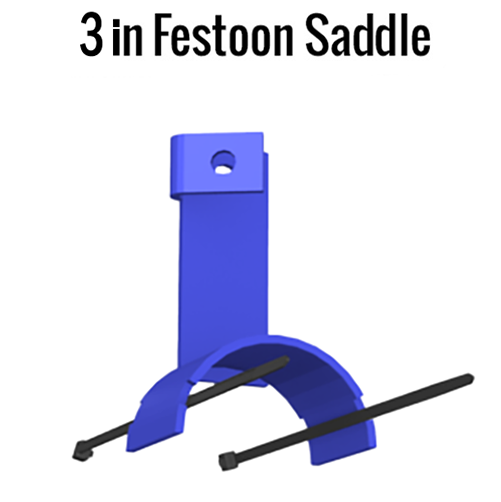

Festoon Carrier *

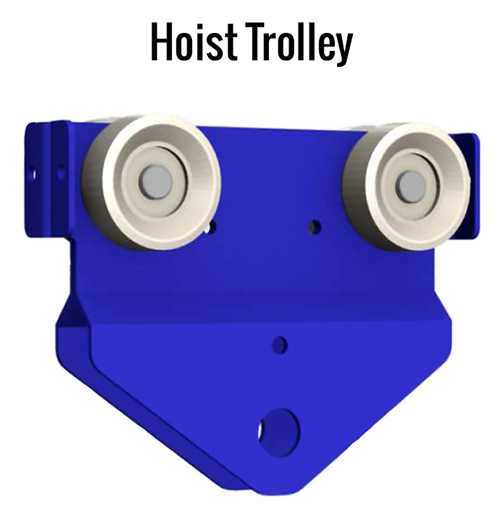

Hoist Trolley

1 Hoist Trolley Included

Crane Accessories

Extra Touch Up Paint [+$13.31]
Festoon Clamp (1 ea.) [+$31.45]
Festoon Clamps (2 ea.) [+$62.89]
Adjustable Bumper (1 ea.) [+$47.17]
Adjustable Bumpers (2 ea.) [+$94.35]

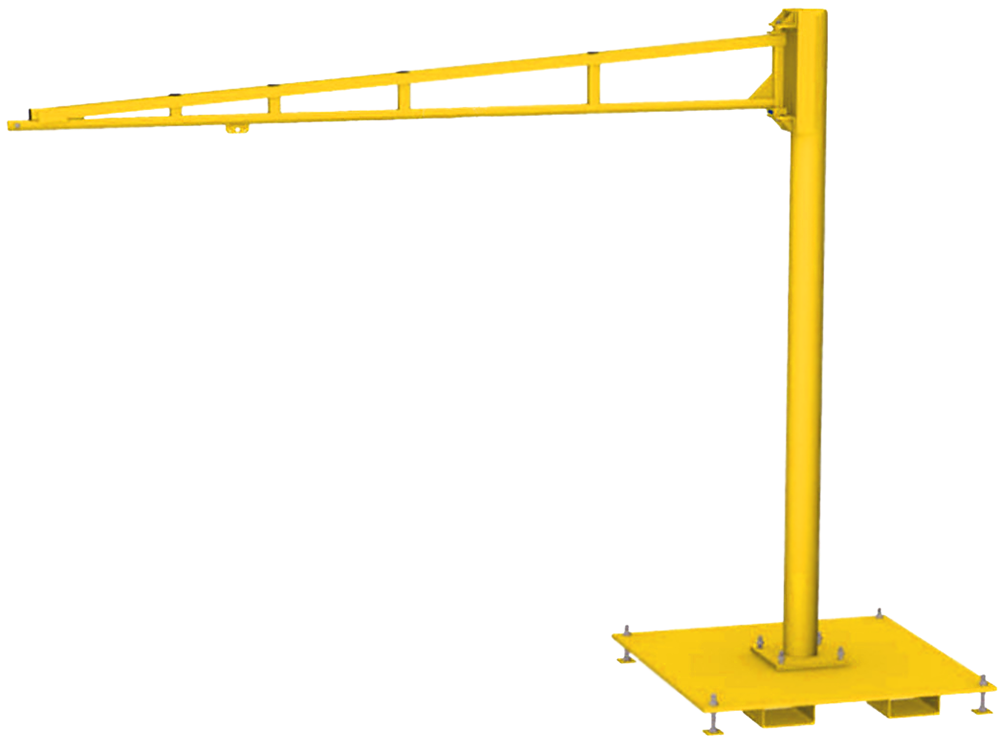

Portable Base (concrete not included + 25 day lead time) [+$5,060.62]

$2,069.49

Qty:

Documents, Drawings, and Manuals

Brochure

Tool Balancer Jib Cranes Brochure

Manual

Tool Balancer Jib Cranes Manual

Standards

Gorbel Crane
Design Standards

Warranty

Gorbel Cranes
10-Year Warranty

Product Specifications

Attribute name	Attribute value
Features	Model: TSJ150-FS-150-8-6 Capacity: 150 lbs. Span: 6 ft. Height Under Boom (HUB): 8 ft. Overall Height (Crane Only): 9.59 ft. Mast Pipe Size: 6 in. Enclosed Track Series: 250 Overturning Moment: 1,415.64 lbs-ft Axial Load: 518.62 lbs. Anchor Bolt Load: 620.67 lbs. Anchor Bolt Size: 3/4 in. dia. (4 EA. REQ. - NOT INCLUDED WITH JIB CRANE) Coverage: 200° Semi-Circular Rotation Shipping Weight (Overall Weight): 361 lbs. Portable Base Option: Includes base, fork pockets, leveling feet, and mast mounting hardware. Lightweight design makes this higher capacity tool jib easy to use for applications involving heavier and high impact tools. Slim profile features bracket centers of only 14 inches, making it ideal for low head room spaces. Simple 4 bolt installation allows for easy adjustment of the height under boom. No special foundation is required, making it easier to install in small areas where floor space may be limited. All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact. Foundationless models are mounted to a 6 inch reinforced floor that require: Centered placement on a square area that is free from cracks, seams, and walls. Chemical anchor bolts that can withstand a minimum of 283.84 pounds of pull out force. Concrete pressure of 3,000 psi that contains wire mesh reinforcement.
Warranty	10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of Origin	Made in the USA
