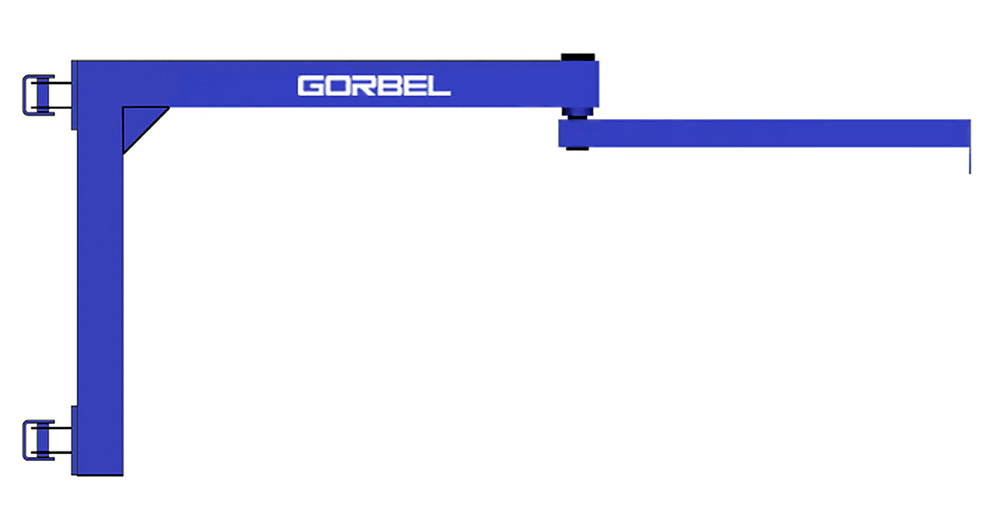

Gorbel Wall Mounted Articulating Jib Crane, 1/8-Ton, Span 12 ft

Manufacturer: Gorbel

Availability: In stock

SKU: AJ200-B1-250-12

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Call For Festoon Options - 314-884-8884

$5,266.23

Qty:

Documents, Drawings, and Manuals

Brochure

Gorbel Articulating Jib Crane Brochure

Manual

Wall Mounted Articulating Jib Crane Manual

Standards

Gorbel Crane
Design Standards

Warranty

Gorbel Cranes
10-Year Warranty

Product Specifications

Attribute name	Attribute value
Features	Capacity: 250 lbs. Span: 12 ft. Bracket Centers: 48 in. Thrust & Pull: 1.43 Kips Overall Deflection Criteria: Span / 200 = 0.72 in. Hoist Allowance: 37.5 lbs. Primary Boom: Arm Length: 7 ft. 1 in. Pipe Size: 7 in. Coverage: 200° Semi-Circular Rotation Secondary Boom: Arm Length: 4 ft. 11 in. Pipe Size: 5 in. Coverage: 360° Circular Rotation Shipping Weight (Overall Weight): 478 lbs. Perfect for applications that require maneuvering under obstructions or around obstacles where there is an adequate wall/column to support the crane. Can be used with hook mounted lifting devices (electric, air, or vacuum). All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications. All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
Warranty	10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of Origin	Made in the USA
