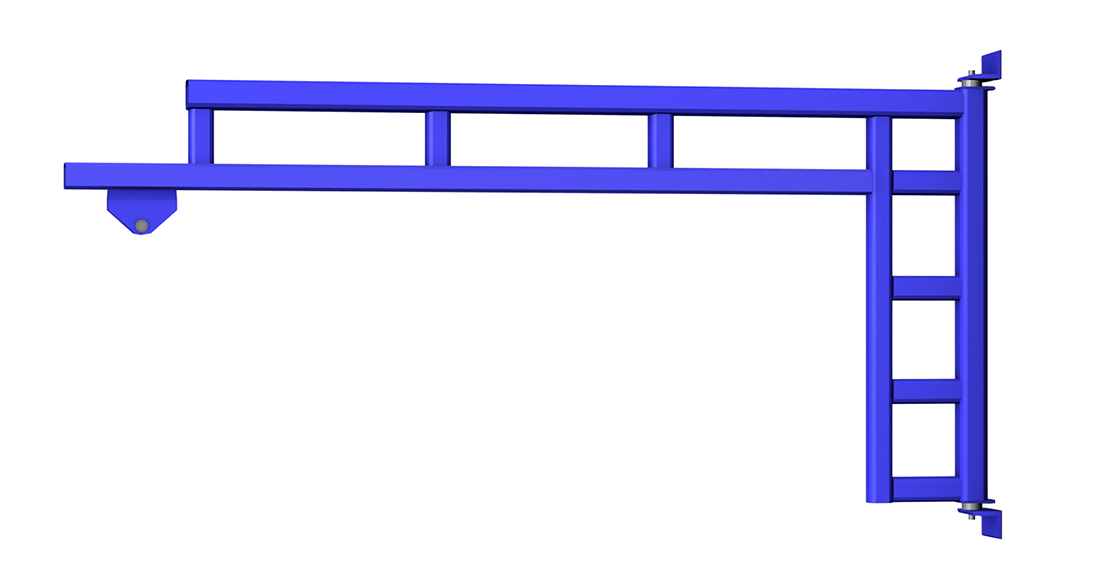

Gorbel Wall Mounted Work Station Jib Crane, 1,000 lbs, Span 10 ft

Manufacturer: Gorbel

Availability: In stock

SKU: WSJ200-1000-10

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

Hoist Trolley *

Festoon Conductor Type *

Crane Accessories

$1,916.72

Qty:

Documents, Drawings, and Manuals

Brochure

Gorbel Wall Mounted Jib Crane Brochure

Manual

Gorbel Work Station Jib Crane Manual

Standards

Gorbel Crane
Design Standards

Warranty

Gorbel Cranes
10-Year Warranty

Product Specifications

Attribute name	Attribute value

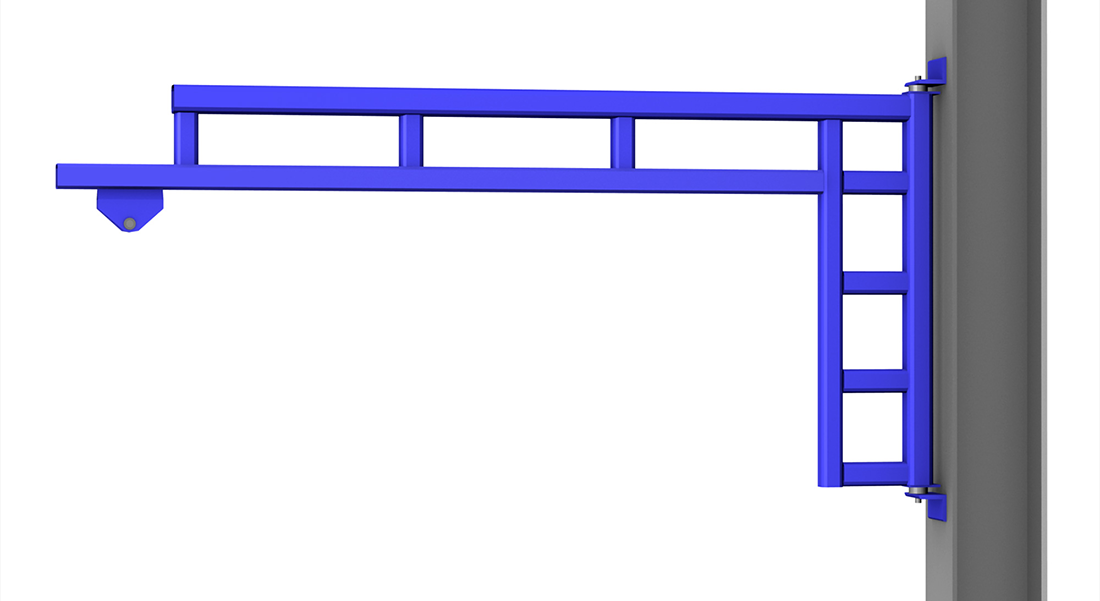

Features	Capacity: 1,000 lbs. Span: 10 ft. Enclosed Track Series: 1,000 Overturning Moment: 13.90 K-Ft Axial Load: 1.52 Kips Thrust and Pull: 2.781 Kips Hoist Trolley Included: 1 ea. Hoist Allowance: 150 lbs. Coverage: 200° Semi-Circular Rotation Shipping Weight (Overall Weight): 224 lbs. Boom assembly is designed to be mounted to a wall or column and comes with pivots at the top and bottom. Designed to support tool balancers, air balancers, vacuum lifters, and hoists. All holes in steel with bearing loads are either punched or drilled. Flame cut holes are not permitted in these applications. All Gorbel Jib Cranes have a design factor of 15% of the allowable capacity for hoist weight and 25% of the allowable capacity for impact.
Warranty	10-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of Origin	Made in the USA
