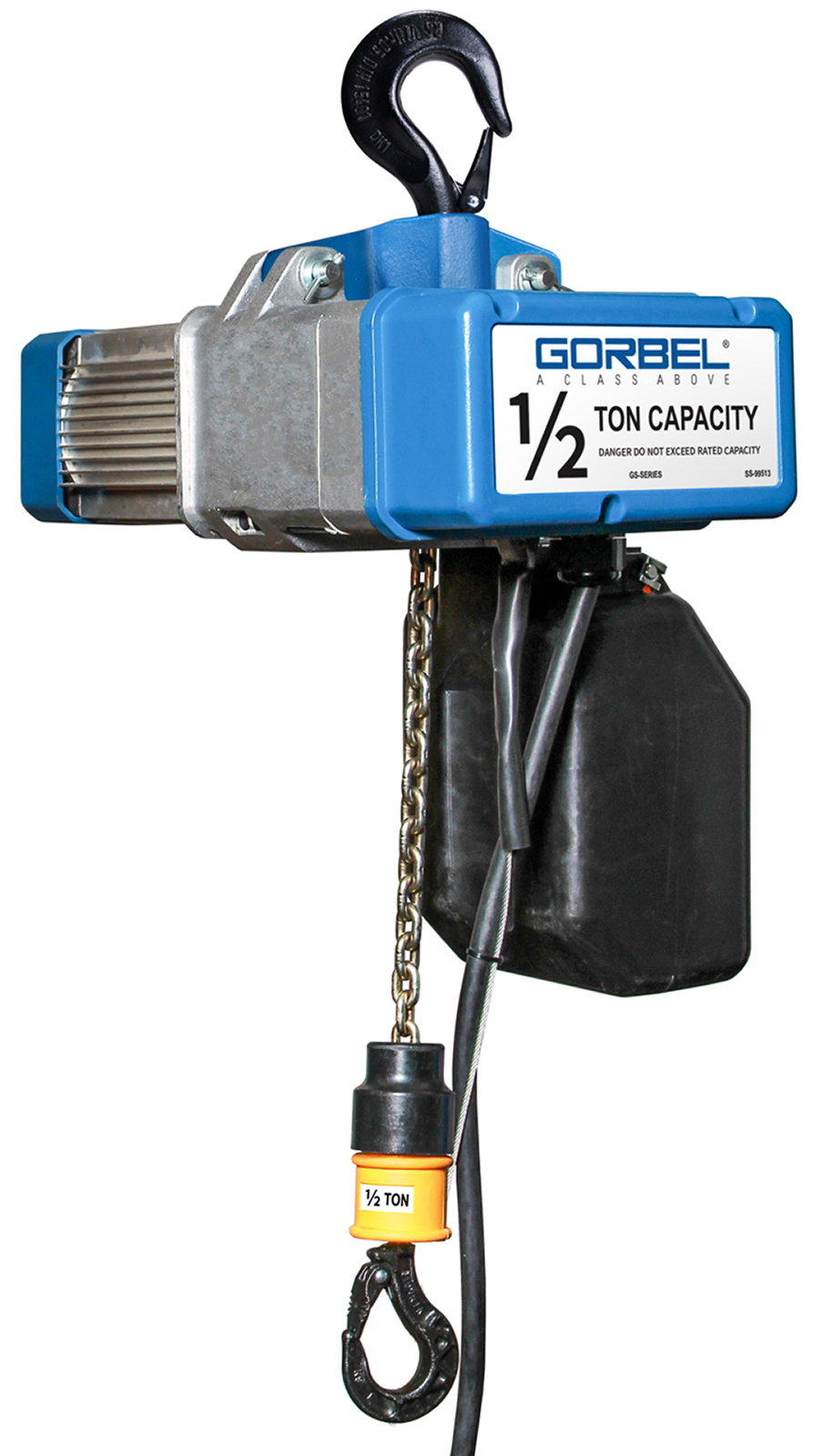

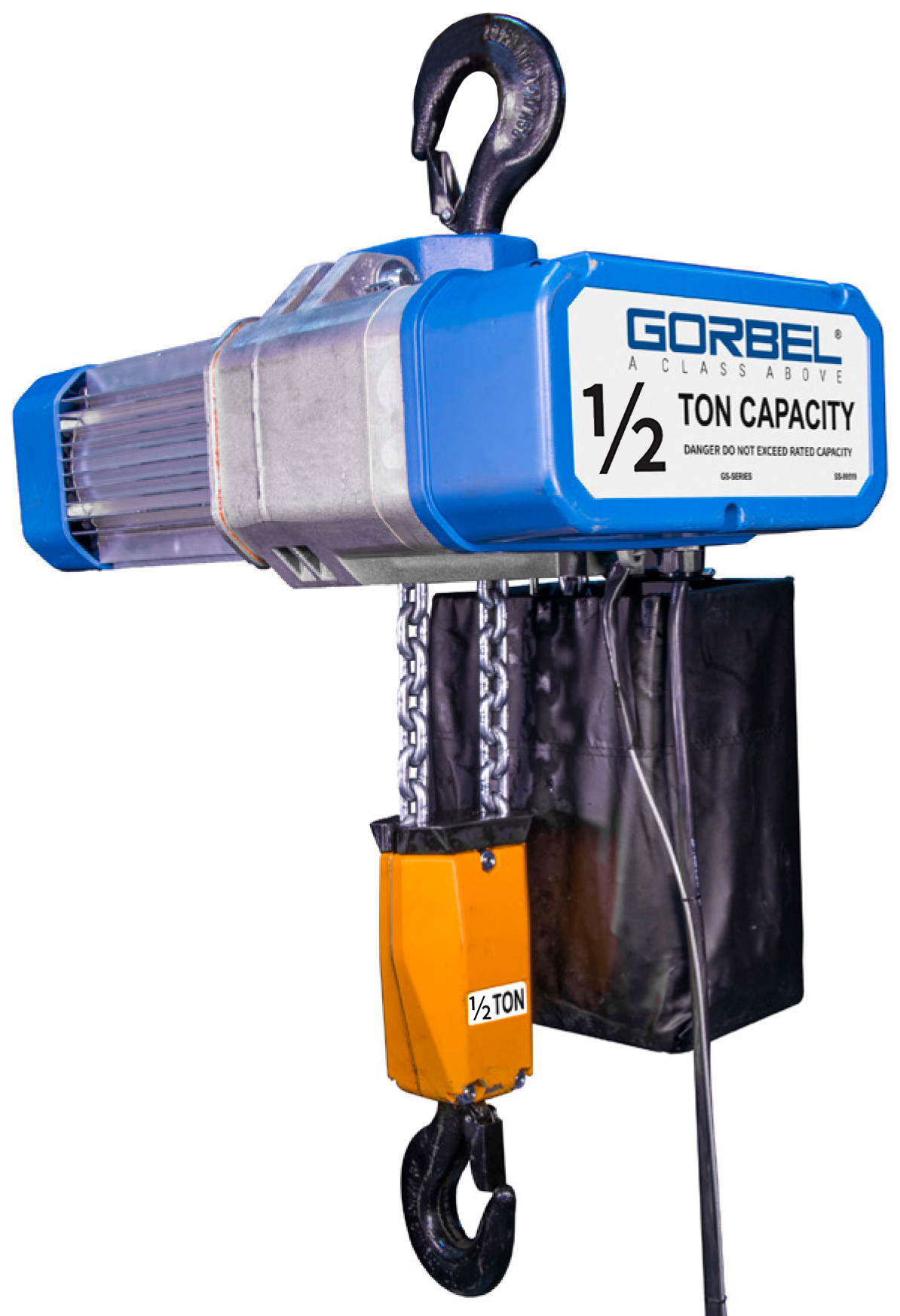

1/2-Ton Gorbel GS Electric Chain Hoist, Three Phase, GECH-1/2

Manufacturer: Gorbel

Availability: In stock

SKU: GECH-1/2

Lead Time (subject to change, call to verify): typically ships in 7-10 business days

Lift *

Voltage *

Lifting Speed *

Hoist Suspension *

Rigid Top Hook

Chain Container *

Canvas Chain Container Included

Push Button Control Drop Length *

Standard - 4 ft. less than the length of the lift

Hoist Power Cord Length *

2 ft. / 0.6 m

$2,472.98

Qty:

Documents, Drawings, and Manuals

Brochure

Gorbel GS Electric Chain Hoist Brochure

Manual

Gorbel GS Electric Chain Hoist Manual

Warranty

Gorbel GS Electric Chain Hoist Warranty

Product Specifications

Attribute name	Attribute value
Features	Capacity: 0.5 ton Manufacturers Part Number: GECH-1/2 Approximate Weight: 57 lbs. (10 ft. lift with top hook) Voltage: 230-3-60 or 460-3-60 VAC (three phase) Motor HP: 0.88 single speed / 1.75 two-speed Headroom: 19.6875 in. ASME Duty Rating: H4 Max Number of Starts per Hour: 300 Max On Time (Min/Hr): 30 Environment Rating: Indoor/Outdoor Pendant Control: NEMA 4X - rocker switch up/down control with E-Stop. Totally enclosed, fan cooled motor. Low voltage, 24V transformer fused for operator protection. Modular brake and clutch externally mounted for easy service. Standard DC brake for long service life. Cased hardened gears provide quiet, smooth operation, and longevity. All components from gears to case are fabricated at a single location for superior quality control. Modular control package features standard IEC contactors as well as upper and lower limit switches. Consistent rectifier throughout the hoist offering and voltage range minimizes spare parts inventory. Tested in accordance with ASME as well as FEM/ISO. Ideal for both high production environments and those applications requiring only periodic lifting and positioning. The compact body design makes it the perfect dimension for any work area and makes it an ideal hoist for low headroom applications. Plus, the smaller size lends itself to easy installation and relocation.
Warranty	2-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of Origin	Germany
