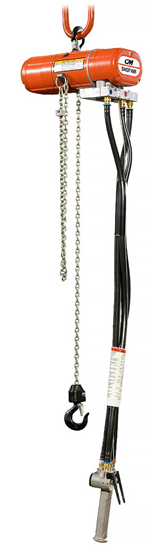

1/4-Ton CM ShopAir Air Chain Hoist - 2182

Availability: In stock

SKU: 2182

Lead Time (subject to change, call to verify): typically ships in 16-20 business days

Lift *

Chain Container *

Pendant Throttle Control *

$2,433.00

Qty:

Documents, Drawings, and Manuals

Spec Sheet

CM ShopAir Chain Hoist Brochure

Manual

CM ShopAir Chain Hoist Manual

Product Specifications

Attribute name	Attribute value
Features	Capacity: 500 lbs. Headroom: 10-7/8 in. Weight: 30 lbs. Full Load Hoist Speed: 21 fpm Full Load Lowering Speed: 75 fpm Normal Operating Pressure: 90 psi Air Consumption: 34 cubic feet/minute Pendant drop: 4 ft. less than lift NPTF air inlet size: 3/8 in. Industrial duty air motor for tough applications Gear train is lifetime lubricated with non-oxidizing grease Epoxy powder coat finish provides a durable exterior Standard Load Limiter for simple automatic overload protection Hardened forged steel, latch - type lower hook rotates 360 degrees Threaded external exhaust for piping away exhaust in clean room or painting applications Each hoist is thoroughly inspected and tested to over 125% of rated load prior to shipment
Warranty	Lifetime Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of Origin	Made in the USA
