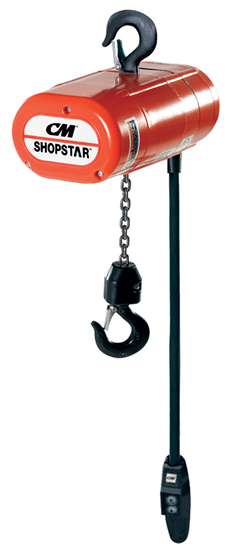

1/4-Ton CM ShopStar Electric Chain Hoist (Three Phase)

Availability: In stock

SKU: 2091-2100-CUST

Lead Time (subject to change, call to verify): typically ships in 7-10 business days

Lift *

Lifting Speed *

Voltage *

Hoist Suspension *

Chain Container *

Hoist Power Cord Length *

Push Button Control Drop Length *

$2,215.00

Qty:

Documents, Drawings, and Manuals

Spec Sheet

CM ShopStar Electric Chain Hoist Brochure

Manual

CM ShopStar Electric Chain Hoist Manual

Spec Sheet

CM Universal Tolley Brochure

Manual

CM Universal Tolley Manual

Product Specifications

Attribute name	Attribute value
Features	Capacity: 500 lbs. Headroom: 11-1/16 in. Weight: 28 lbs. at 10 ft. lift (add 1 pound per foot of lift) Reeving: 1 Motor HP: 1/6 H4 Duty is ideal for heavy-duty industrial applications. Thermally protected hoist motor. Cast aluminum alloy hoist frame with durable epoxy powder coat finish. Gear train lifetime lubricated with non-oxidizing grease. Totally enclosed hoist frame protects motor from environmental contamination. NEMA 4 Pendant Dual Braking System - D.C. brake plus regenerative Each hoist is thoroughly inspected and tested to over 125% of rated load prior to shipment.
Warranty	Lifetime Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
Country of Origin	Made in the USA
