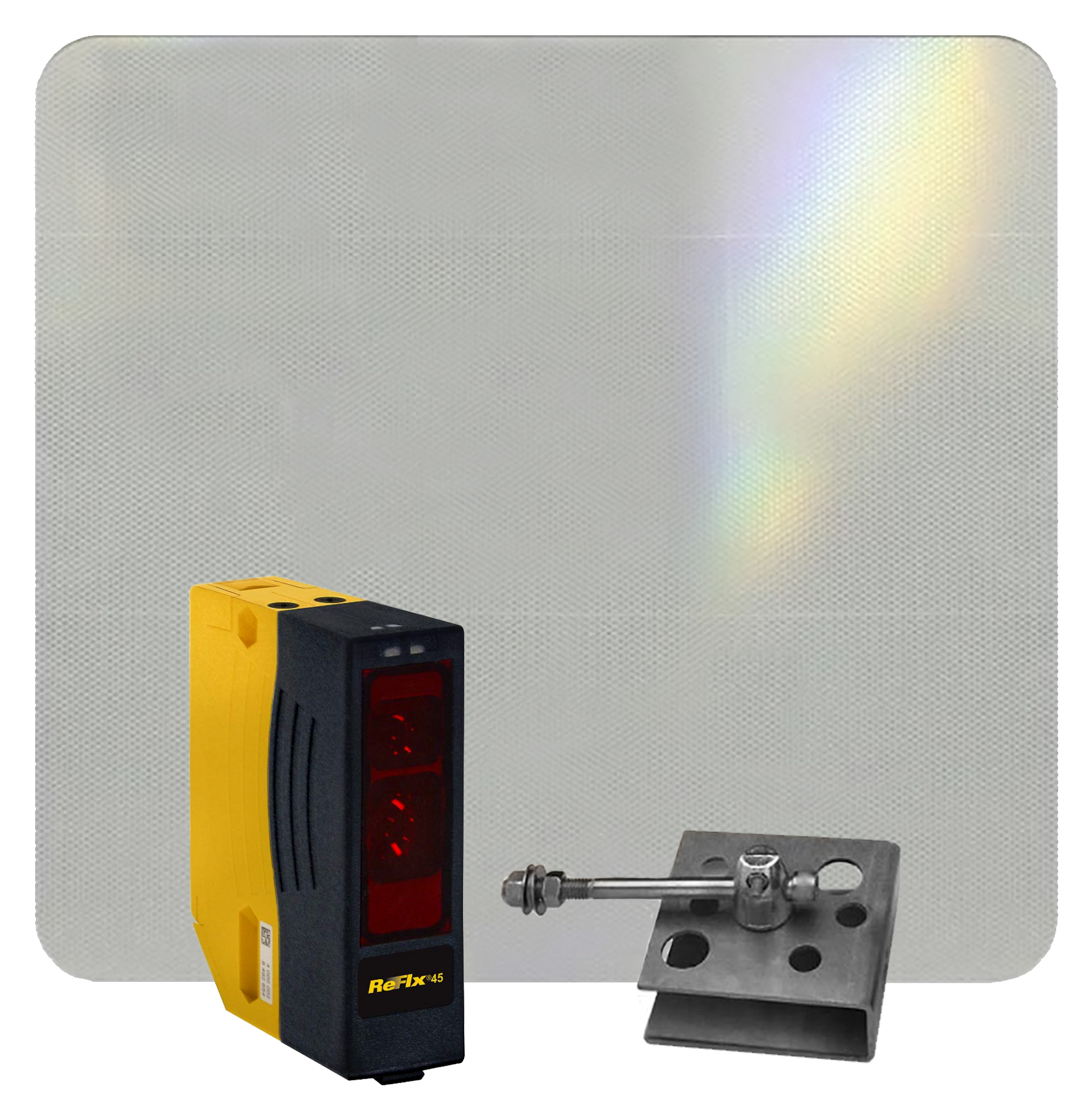

ReFlx 45 Crane Anti-Collision System, One Event, Hinged Bracket with DIN Rail Mounted Reflector, REFLX45-DINH

Manufacturer: Magnetek

Availability: In stock

SKU: REFLX45-DINH

Lead Time (subject to change, call to verify): typically ships in 2-3 business days

ReFlex 45 Cable (3 conductor, 18 gauge) *

Crane Application *

Single stop action only. Prevents crane-to-crane or crane-to-end-stop collisions.

System Includes *

$303.00

Qty:

Documents, Drawings, and Manuals

Spec Sheet

Magnetek Crane Collision Avoidance System Brochure

Manual

Magnetek ReFlx 45 Crane Collision Avoidance System Manual

Product Specifications

Attribute name	Attribute value
Features	Sensor/Light Source: Single Stop Action, Polarized Retro-Reflective, LED Operating Range: 3-45 foot detection range* (Runway length may be greater than detection range) Input Voltage:* 24-240VAC or 12-240VDC Power Consumption: 3.5 VA Operating Mode Selection: DIP-switches Signal Output: Relay, Form C rated at 250V AC/DC, 2A max IP67 rating for indoor applications only (This system may not operate properly in direct sunlight or inclement weather conditions). Two green LEDs are located on the top of the sensor: one in the front, and the other in the back. They indicate that the sensor is powered on. Two yellow LEDs next to the power indicators specify the object is within the sensing range. This system is designed for use with all types of cranes including cranes with adjustable frequency drives, soft starters, or contactor controls. All electronic components are built into one housing, enabling easy installation on an overhead crane.
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
