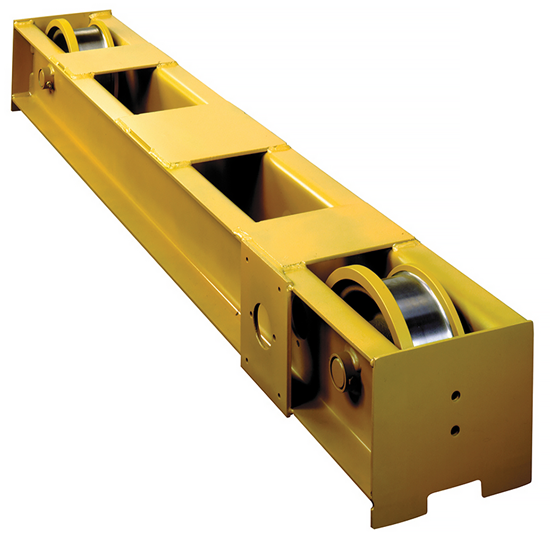

Yale 5-Ton Top Running Push Type End Trucks, 904535

Manufacturer: Yale | Shaw-Box

Availability: In stock

SKU: 904535

Lead Time (subject to change, call to verify): typically ships in 13-16 business days

Crane Application *

Includes *

One pair of end trucks and required hardware for attaching end truck frames to bridge I-beam. Wheels fit ASCE rail only. Minimum recommended rail of ASCE 20 lbs. Maximum size runway rail for minimum CMAA Specification No. 74 float of 3/4-inch is ASCE 45 lbs. Made to order non-refundable item.

$3,632.00

Qty:

Documents, Drawings, and Manuals

Spec Sheet

Yale Crane Kit Brochure

Manual

Yale Top Running Push End Truck Manual

Product Specifications

Attribute name	Attribute value
Features	8-inch diameter of high strength ductile iron, with a hardness of 220 BHN. Wheels have cylindrical tread designed for a minimum recommended rail of ASCE 20 lbs. Maximum size runway rail for minimum CMAA Specification No. 74 float of 3/4-inch is ASCE 45 lbs. Maximum allowable wheel load is 6,500 pounds.
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EP's repair facility.)
