Gorbel Destuff-it/Restuff-it Portable Conveyor System

The Gorbel Destuff-it and Restuff-it is a portable ergonomic conveyor system that helps workers quickly and safely load and unload containers and trailers in warehouses, distribution centers, and other fast-paced environments. These trailer conveyor belts have a pivoting belt conveyor that can be moved vertically and horizontally to match box or part height. The Destuff-it machine also features a platform that is height adjustable allows workers to maintain a good ergonomic posture while loading or unloading a trailer. The Restuff-it machine has a bi-directional conveyor that allows you to both load and unload the trailer or truck. The typical length of the Destuff-it conveyor is 11 to 12 feet, and can be used in conjunction with various conveyor options including: flexible powered, fixed telescoping, and cascading belt conveyors.

Gorbel Destuff-It Machine

Trailer Conveyor Belt

Destuff-It Conveyor Belt

Cascading Belt Conveyor

Destuff-it/Restuff-it Pivoting Conveyor

Destuff-it and Restuff-it Operator Platform

Destuff-it and Restuff-it Benefits:

Increased Productivity - reduces the time it takes to load and unload containers and trailers.
Improved Safety - reduces fatigue and muscle strain.
Reduced Costs – reduces the time and manpower it takes to load and unload containers and trailers by nearly 50%.

Destuff-it and Restuff-it Features:

Weight: 3,700 lbs.
Width/Height: 81/83 inches.
Pivoting Conveyor Width: 24 inches.
Power Supply: 480-3-60 VAC
Belt Capacity: 165 lbs.
Belt Speed: 86/108 fpm.
Travel Speed: 50 fpm.
Operator Platform Capacity: 550 lbs.

Destuff-it and Restuff-it Controls and Components:

Destuff-it Conveyor System Base

Destuff-it Worker Platform

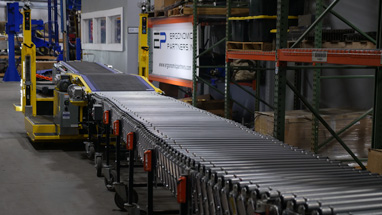

Gorbel Destuff-it with Conveyor Extension

Gorbel Destuff-it Handle

Conveyor Controls for Destuff-it/Restuff-it

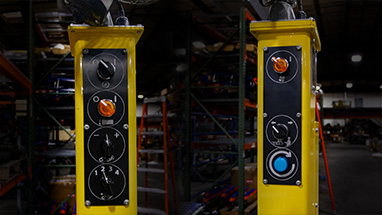

Gorbel Destuff-it Conveyor Controls

Cascading Belt Conveyors for Trailers

Cascading Belt Conveyors (CBC) are expandable conveyor systems that can help cover longer or shorter distances. These belts are able to fully extend up to 70 feet when unloading a conveyor, or compact down to a much smaller size for easy storage when not in use. They are constructed from lightweight aluminum with heavy-duty casters for ease of movement. Gorbel’s line of CBCs are designed to easily be used in conjunction with a Destuff-it or Restuff-it Machine.

Features and Benefits:

Keeps operators in an ergonomic position, increasing workflow and preventing product damage from dropping or throwing.
Power drive wheels for motorized expansion and contraction.
Variable speed belt drives adjustable up to 120 fpm.
Unload up to 1,200 cartons per hour.
35 lbs./ft. capacity.

What to Consider When Purchasing a Trailer Conveyor Belt

The type of conveyor that is best for your application depends on the size and weight of the load, the distance that load needs to be transported, and the type of material being transported.

Some of the most asked questions are:

What is the height of the trailer? The conveyor needs to be able to reach the top of the trailer so the load can easily be unloaded.
What is the width of the trailer? The conveyor needs to be wide enough to accommodate the load.
What is the weight of the load? The conveyor needs to be able to support the weight.
What type of material is being transported? The conveyor needs to be able to support the type of materials it is carrying.

The Gorbel Restuff-it and Destuff-it portable conveyor systems are valuable tools for any warehouse or distribution center looking to increase productivity, ergonomics, and efficiency. Let Ergonomic Partners work up a custom solution for you today.

Ergonomic Partners is a distributor for Gorbel Restuff-It and Destuff-It machines; serving clients from coast to coast, Canada, and Mexico, and especially focused in the states of Missouri, Illinois, Indiana, Iowa, Kansas, Nebraska, Arkansas, Mississippi, Tennessee, Kentucky, South Carolina, Florida, and Oklahoma.
