Articulated Jib Cranes – Gorbel Pivot Pro Vacuum Arms
Ergonomic Partners provides articulated jib cranes and Gorbel PIVOT PRO Vacuum Arms to help facilities work ergonomically. Capacities range from 50 pounds to 2,000 pounds. These articulating jib cranes have two arms that can rotate up to 360 degrees at each pivot point. Articulated Jib Cranes increase productivity, reduce injuries, and improve safety. The ease of rotation from the boom, with the low force required for movement, allow for very fast and precise load positioning. They are typically used to move loads under obstructions, around corners, through doorways or reaching loads into or out of machines.

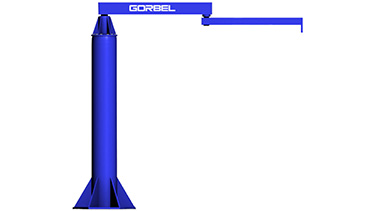

Free Standing Articulating Jib Cranes
Features include: Capacity up to 2,000 pounds, spans to 16 feet, 360-degree rotation at each pivot point, can be used with hook mounted lifting devices (electric, air, or vacuum), and CE Approved.

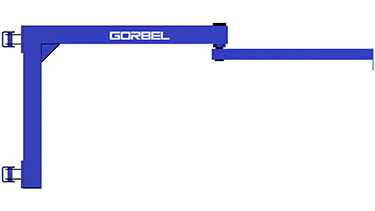

Wall Mounted Articulated Jib Cranes
Features include: Capacity up to 2,000 pounds, spans to 16 feet, 360-degree rotation at second pivot point, 200-degree rotation at the mast pivot point can be used with hook mounted lifting devices (electric, air, or vacuum), and CE Approved.
Ceiling Mounted Articulated Jibs
Features include: Capacity up to 2,000 pounds, spans to 16 feet, 360-degree rotation at both pivot points, can be used with hook mounted lifting devices (electric, air, or vacuum), and CE Approved.
Free Standing Pivot Pro
Features include: Capacity up to 150 pounds, standard spans to 12 feet and heights under boom to 12 feet, 360 degree rotation on primary boom and 300 on secondary arm, no foundation required, designed to fit all major vacuum equipment manufacturers, sealed tubes eliminate the need for festooning.

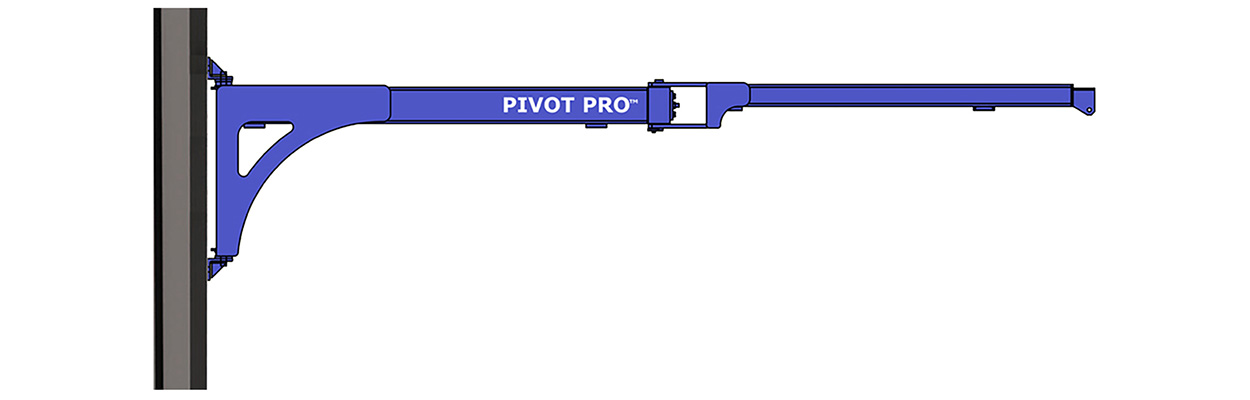

Wall Mounted Pivot Pro
Features include: Capacity up to 150 pounds, spans to 12 feet, 200-degree rotation on primary boom and 300 on secondary arm, designed to fit all major vacuum equipment manufacturers, sealed tubes eliminate the need for festooning.
Gorbel Easy Arm
The Gorbel Easy Arm is a "smart lifting solution". It combines a custom articulating jib crane that is integrated with the Gorbel G-Force "smart hoist". The Easy Arm is the ideal solution if you're looking for a turn-key lifting device that provides fast and precise load placement.
Free Standing, Wall and Ceiling Mounted Articulated Jib Cranes
| Gorbel Free Standing Articulated Jib Cranes (AJ360-F) |
 |
| Model No. |
Capacity |
Ht. Under Boom |
Span |
| AJ360-F-150-8-8 |
150 lbs. |
8 ft. |
8 ft. |
| AJ360-F-150-8-10 |
150 lbs. |
8 ft. |
10 ft. |
| AJ360-F-150-8-12 |
150 lbs. |
8 ft. |
12 ft. |
| AJ360-F-150-8-14 |
150 lbs. |
8 ft. |
14 ft. |
| AJ360-F-150-8-16 |
150 lbs. |
8 ft. |
16 ft. |
| AJ360-F-150-10-8 |
150 lbs. |
10 ft. |
8 ft. |
| AJ360-F-150-10-10 |
150 lbs. |
10 ft. |
10 ft. |
| AJ360-F-150-10-12 |
150 lbs. |
10 ft. |
12 ft. |
| AJ360-F-150-10-14 |
150 lbs. |
10 ft. |
14 ft. |
| AJ360-F-150-10-16 |
150 lbs. |
10 ft. |
16 ft. |
| AJ360-F-150-12-8 |
150 lbs. |
12 ft. |
8 ft. |
| AJ360-F-150-12-10 |
150 lbs. |
12 ft. |
10 ft. |
| AJ360-F-150-12-12 |
150 lbs. |
12 ft. |
12 ft. |
| AJ360-F-150-12-14 |
150 lbs. |
12 ft. |
14 ft. |
| AJ360-F-150-12-16 |
150 lbs. |
12 ft. |
16 ft. |
| AJ360-F-150-14-8 |
150 lbs. |
14 ft. |
8 ft. |
| AJ360-F-150-14-10 |
150 lbs. |
14 ft. |
10 ft. |
| AJ360-F-150-14-12 |
150 lbs. |
14 ft. |
12 ft. |
| AJ360-F-150-14-14 |
150 lbs. |
14 ft. |
14 ft. |
| AJ360-F-150-14-16 |
150 lbs. |
14 ft. |
16 ft. |
| AJ360-F-250-8-8 |
250 lbs. |
8 ft. |
8 ft. |
| AJ360-F-250-8-10 |
250 lbs. |
8 ft. |
10 ft. |
| AJ360-F-250-8-12 |
250 lbs. |
8 ft. |
12 ft. |
| AJ360-F-250-8-14 |
250 lbs. |
8 ft. |
14 ft. |
| AJ360-F-250-8-16 |
250 lbs. |
8 ft. |
16 ft. |
| AJ360-F-250-10-8 |
250 lbs. |
10 ft. |
8 ft. |
| AJ360-F-250-10-10 |
250 lbs. |
10 ft. |
10 ft. |
| AJ360-F-250-10-12 |
250 lbs. |
10 ft. |
12 ft. |
| AJ360-F-250-10-14 |
250 lbs. |
10 ft. |
14 ft. |
| AJ360-F-250-10-16 |
250 lbs. |
10 ft. |
16 ft. |
| AJ360-F-250-12-8 |
250 lbs. |
12 ft. |
8 ft. |
| AJ360-F-250-12-10 |
250 lbs. |
12 ft. |
10 ft. |
| AJ360-F-250-12-12 |
250 lbs. |
12 ft. |
12 ft. |
| AJ360-F-250-12-14 |
250 lbs. |
12 ft. |
14 ft. |
| AJ360-F-250-12-16 |
250 lbs. |
12 ft. |
16 ft. |
| AJ360-F-250-14-8 |
250 lbs. |
14 ft. |
8 ft. |
| AJ360-F-250-14-10 |
250 lbs. |
14 ft. |
10 ft. |
| AJ360-F-250-14-12 |
250 lbs. |
14 ft. |
12 ft. |
| AJ360-F-250-14-14 |
250 lbs. |
14 ft. |
14 ft. |
| AJ360-F-250-14-16 |
250 lbs. |
14 ft. |
16 ft. |
| AJ360-F-500-8-8 |
500 lbs. |
8 ft. |
8 ft. |
| AJ360-F-500-8-10 |
500 lbs. |
8 ft. |
10 ft. |
| AJ360-F-500-8-12 |
500 lbs. |
8 ft. |
12 ft. |
| AJ360-F-500-8-14 |
500 lbs. |
8 ft. |
14 ft. |
| AJ360-F-500-8-16 |
500 lbs. |
8 ft. |
16 ft. |
| AJ360-F-500-10-8 |
500 lbs. |
10 ft. |
8 ft. |
| AJ360-F-500-10-10 |
500 lbs. |
10 ft. |
10 ft. |
| AJ360-F-500-10-12 |
500 lbs. |
10 ft. |
12 ft. |
| AJ360-F-500-10-14 |
500 lbs. |
10 ft. |
14 ft. |
| AJ360-F-500-10-16 |
500 lbs. |
10 ft. |
16 ft. |
| AJ360-F-500-12-8 |
500 lbs. |
12 ft. |
8 ft. |
| AJ360-F-500-12-10 |
500 lbs. |
12 ft. |
10 ft. |
| AJ360-F-500-12-12 |
500 lbs. |
12 ft. |
12 ft. |
| AJ360-F-500-12-14 |
500 lbs. |
12 ft. |
14 ft. |
| AJ360-F-500-12-16 |
500 lbs. |
12 ft. |
16 ft. |
| AJ360-F-500-14-8 |
500 lbs. |
14 ft. |
8 ft. |
| AJ360-F-500-14-10 |
500 lbs. |
14 ft. |
10 ft. |
| AJ360-F-500-14-12 |
500 lbs. |
14 ft. |
12 ft. |
| AJ360-F-500-14-14 |
500 lbs. |
14 ft. |
14 ft. |
| AJ360-F-500-14-16 |
500 lbs. |
14 ft. |
16 ft. |
| AJ360-F-1000-8-8 |
1,000 lbs. |
8 ft. |
8 ft. |
| AJ360-F-1000-8-10 |
1,000 lbs. |
8 ft. |
10 ft. |
| AJ360-F-1000-8-12 |
1,000 lbs. |
8 ft. |
12 ft. |
| AJ360-F-1000-8-14 |
1,000 lbs. |
8 ft. |
14 ft. |
| AJ360-F-1000-8-16 |
1,000 lbs. |
8 ft. |
16 ft. |
| AJ360-F-1000-10-8 |
1,000 lbs. |
10 ft. |
8 ft. |
| AJ360-F-1000-10-10 |
1,000 lbs. |
10 ft. |
10 ft. |
| AJ360-F-1000-10-12 |
1,000 lbs. |
10 ft. |
12 ft. |
| AJ360-F-1000-10-14 |
1,000 lbs. |
10 ft. |
14 ft. |
| AJ360-F-1000-10-16 |
1,000 lbs. |
10 ft. |
16 ft. |
| AJ360-F-1000-12-8 |
1,000 lbs. |
12 ft. |
8 ft. |
| AJ360-F-1000-12-10 |
1,000 lbs. |
12 ft. |
10 ft. |
| AJ360-F-1000-12-12 |
1,000 lbs. |
12 ft. |
12 ft. |
| AJ360-F-1000-12-14 |
1,000 lbs. |
12 ft. |
14 ft. |
| AJ360-F-1000-12-16 |
1,000 lbs. |
12 ft. |
16 ft. |
| AJ360-F-1000-14-8 |
1,000 lbs. |
14 ft. |
8 ft. |
| AJ360-F-1000-14-10 |
1,000 lbs. |
14 ft. |
10 ft. |
| AJ360-F-1000-14-12 |
1,000 lbs. |
14 ft. |
12 ft. |
| AJ360-F-1000-14-14 |
1,000 lbs. |
14 ft. |
14 ft. |
| AJ360-F-1000-14-16 |
1,000 lbs. |
14 ft. |
16 ft. |
| AJ360-F-2000-8-8 |
2,000 lbs. |
8 ft. |
8 ft. |
| AJ360-F-2000-8-10 |
2,000 lbs. |
8 ft. |
10 ft. |
| AJ360-F-2000-8-12 |
2,000 lbs. |
8 ft. |
12 ft. |
| AJ360-F-2000-8-14 |
2,000 lbs. |
8 ft. |
14 ft. |
| AJ360-F-2000-8-16 |
2,000 lbs. |
8 ft. |
16 ft. |
| AJ360-F-2000-10-8 |
2,000 lbs. |
10 ft. |
8 ft. |
| AJ360-F-2000-10-10 |
2,000 lbs. |
10 ft. |
10 ft. |
| AJ360-F-2000-10-12 |
2,000 lbs. |
10 ft. |
12 ft. |
| AJ360-F-2000-10-14 |
2,000 lbs. |
10 ft. |
14 ft. |
| AJ360-F-2000-10-16 |
2,000 lbs. |
10 ft. |
16 ft. |
| AJ360-F-2000-12-8 |
2,000 lbs. |
12 ft. |
8 ft. |
| AJ360-F-2000-12-10 |
2,000 lbs. |
12 ft. |
10 ft. |
| AJ360-F-2000-12-12 |
2,000 lbs. |
12 ft. |
12 ft. |
| AJ360-F-2000-12-14 |
2,000 lbs. |
12 ft. |
14 ft. |
| AJ360-F-2000-12-16 |
2,000 lbs. |
12 ft. |
16 ft. |
| AJ360-F-2000-14-8 |
2,000 lbs. |
14 ft. |
8 ft. |
| AJ360-F-2000-14-10 |
2,000 lbs. |
14 ft. |
10 ft. |
| AJ360-F-2000-14-12 |
2,000 lbs. |
14 ft. |
12 ft. |
| AJ360-F-2000-14-14 |
2,000 lbs. |
14 ft. |
14 ft. |
| Gorbel Wall Mounted Articulating Jib Cranes (AJ200) |
 |
| Model No. |
Capacity |
Span |
Thrust/Pull |
| AJ200-B1-150-8 |
150 lbs. |
8 ft. |
715 lbs. |
| AJ200-B1-150-10 |
150 lbs. |
10 ft. |
925 lbs. |
| AJ200-B1-150-12 |
150 lbs. |
12 ft. |
905 lbs. |
| AJ200-B1-150-14 |
150 lbs. |
14 ft. |
1,220 lbs. |
| AJ200-B1-150-16 |
150 lbs. |
16 ft. |
1,451 lbs. |
| AJ200-B1-250-8 |
250 lbs. |
8 ft. |
1,118 lbs. |
| AJ200-B1-250-10 |
250 lbs. |
10 ft. |
1,537 lbs. |
| AJ200-B1-250-12 |
250 lbs. |
12 ft. |
1,424 lbs. |
| AJ200-B1-250-14 |
250 lbs. |
14 ft. |
1,368 lbs. |
| AJ200-B1-250-16 |
250 lbs. |
16 ft. |
1,636 lbs. |
| AJ200-B1-500-8 |
500 lbs. |
8 ft. |
2,137 lbs. |
| AJ200-B1-500-10 |
500 lbs. |
10 ft. |
2,035 lbs. |
| AJ200-B1-500-12 |
500 lbs. |
12 ft. |
2,050 lbs. |
| AJ200-B1-500-14 |
500 lbs. |
14 ft. |
2,431 lbs. |
| AJ200-B2-500-16 |
500 lbs. |
16 ft. |
3,074 lbs. |
| AJ200-B1-1000-8 |
1,000 lbs. |
8 ft. |
3,056 lbs. |
| AJ200-B2-1000-10 |
1,000 lbs. |
10 ft. |
3,999 lbs. |
| AJ200-B2-1000-12 |
1,000 lbs. |
12 ft. |
3,886 lbs. |
| AJ200-B2-1000-14 |
1,000 lbs. |
14 ft. |
4,591 lbs. |
| AJ200-B2-1000-16 |
1,000 lbs. |
16 ft. |
4,647 lbs. |
| AJ200-B2-2000-8 |
2,000 lbs. |
8 ft. |
5,975 lbs. |
| AJ200-B2-2000-10 |
2,000 lbs. |
10 ft. |
6,132 lbs. |
| AJ200-B2-2000-12 |
2,000 lbs. |
12 ft. |
7,549 lbs. |
| AJ200-B2-2000-14 |
2,000 lbs. |
14 ft. |
7,532 lbs. |
| AJ200-B2-2000-16 |
2,000 lbs. |
16 ft. |
8,688 lbs. |
| Gorbel Ceiling Mounted Articulating Jib Crane |
 |
| Model No. |
Capacity |
Span |
Ship Wt. |
| AJ360-C-150-8 |
150 lbs. |
8 ft. |
290 lbs. |
| AJ360-C-150-10 |
150 lbs. |
10 ft. |
370 lbs. |
| AJ360-C-150-12 |
150 lbs. |
12 ft. |
400 lbs. |
| AJ360-C-150-14 |
150 lbs. |
14 ft. |
510 lbs. |
| AJ360-C-150-16 |
150 lbs. |
16 ft. |
610 lbs. |
| AJ360-C-250-8 |
250 lbs. |
8 ft. |
340 lbs. |
| AJ360-C-250-10 |
250 lbs. |
10 ft. |
440 lbs. |
| AJ360-C-250-12 |
250 lbs. |
12 ft. |
540 lbs. |
| AJ360-C-250-14 |
250 lbs. |
14 ft. |
575 lbs. |
| AJ360-C-250-16 |
250 lbs. |
16 ft. |
645 lbs. |
| AJ360-C-500-8 |
500 lbs. |
8 ft. |
470 lbs. |
| AJ360-C-500-10 |
500 lbs. |
10 ft. |
505 lbs. |
| AJ360-C-500-12 |
500 lbs. |
12 ft. |
735 lbs. |
| AJ360-C-500-14 |
500 lbs. |
14 ft. |
780 lbs. |
| AJ360-C-500-16 |
500 lbs. |
16 ft. |
935 lbs. |
| AJ360-C-1000-8 |
1,000 lbs. |
8 ft. |
650 lbs. |
| AJ360-C-1000-10 |
1,000 lbs. |
10 ft. |
780 lbs. |
| AJ360-C-1000-12 |
1,000 lbs. |
12 ft. |
950 lbs. |
| AJ360-C-1000-14 |
1,000 lbs. |
14 ft. |
1,005 lbs. |
| AJ360-C-1000-16 |
1,000 lbs. |
16 ft. |
1,795 lbs. |
| AJ360-C-2000-8 |
2,000 lbs. |
8 ft. |
850 lbs. |
| AJ360-C-2000-10 |
2,000 lbs. |
10 ft. |
1,285 lbs. |
| AJ360-C-2000-12 |
2,000 lbs. |
12 ft. |
1,365 lbs. |
| AJ360-C-2000-14 |
2,000 lbs. |
14 ft. |
1,445 lbs. |
| AJ360-C-2000-16 |
2,000 lbs. |
16 ft. |
1,620 lbs. |
Gorbel Pivot Pro Vacuum Arms
| Gorbel Free Standing PIVOT PRO |
 |
| Model No. |
Capacity |
Ht. Under Boom |
Span |
| PPRO-FS-50-10-8-B |
50 lbs. |
10 ft. |
8 ft. |
| PPRO-FS-50-10-8-T |
50 lbs. |
10 ft. |
8 ft. |
| PPRO-FS-50-10-10-B |
50 lbs. |
10 ft. |
10 ft. |
| PPRO-FS-50-10-10-T |
50 lbs. |
10 ft. |
10 ft. |
| PPRO-FS-50-10-12-B |
50 lbs. |
10 ft. |
12 ft. |
| PPRO-FS-50-10-12-T |
50 lbs. |
10 ft. |
12 ft. |
| PPRO-FS-50-12-8-B |
50 lbs. |
12 ft. |
8 ft. |
| PPRO-FS-50-12-8-T |
50 lbs. |
12 ft. |
8 ft. |
| PPRO-FS-50-12-10-B |
50 lbs. |
12 ft. |
10 ft. |
| PPRO-FS-50-12-10-T |
50 lbs. |
12 ft. |
10 ft. |
| PPRO-FS-50-12-12-B |
50 lbs. |
12 ft. |
12 ft. |
| PPRO-FS-50-12-12-T |
50 lbs. |
12 ft. |
12 ft. |
| PPRO-FS-75-10-8-B |
75 lbs. |
10 ft. |
8 ft. |
| PPRO-FS-75-10-8-T |
75 lbs. |
10 ft. |
8 ft. |
| PPRO-FS-75-10-10-B |
75 lbs. |
10 ft. |
10 ft. |
| PPRO-FS-75-10-10-T |
75 lbs. |
10 ft. |
10 ft. |
| PPRO-FS-75-10-12-B |
75 lbs. |
10 ft. |
12 ft. |
| PPRO-FS-75-10-12-T |
75 lbs. |
10 ft. |
12 ft. |
| PPRO-FS-75-12-8-B |
75 lbs. |
12 ft. |
8 ft. |
| PPRO-FS-75-12-8-T |
75 lbs. |
12 ft. |
8 ft. |
| PPRO-FS-75-12-10-B |
75 lbs. |
12 ft. |
10 ft. |
| PPRO-FS-75-12-10-T |
75 lbs. |
12 ft. |
10 ft. |
| PPRO-FS-75-12-12-B |
75 lbs. |
12 ft. |
12 ft. |
| PPRO-FS-75-12-12-T |
75 lbs. |
12 ft. |
12 ft. |
| PPRO-FS-100-10-8-B |
100 lbs. |
10 ft. |
8 ft. |
| PPRO-FS-100-10-8-T |
100 lbs. |
10 ft. |
8 ft. |
| PPRO-FS-100-10-10-B |
100 lbs. |
10 ft. |
10 ft. |
| PPRO-FS-100-10-10-T |
100 lbs. |
10 ft. |
10 ft. |
| PPRO-FS-100-10-12-B |
100 lbs. |
10 ft. |
12 ft. |
| PPRO-FS-100-10-12-T |
100 lbs. |
10 ft. |
12 ft. |
| PPRO-FS-100-12-8-B |
100 lbs. |
12 ft. |
8 ft. |
| PPRO-FS-100-12-8-T |
100 lbs. |
12 ft. |
8 ft. |
| PPRO-FS-100-12-10-B |
100 lbs. |
12 ft. |
10 ft. |
| PPRO-FS-100-12-10-T |
100 lbs. |
12 ft. |
10 ft. |
| PPRO-FS-100-12-12-B |
100 lbs. |
12 ft. |
12 ft. |
| PPRO-FS-100-12-12-T |
100 lbs. |
12 ft. |
12 ft. |
| PPRO-FS-150-10-8-B |
150 lbs. |
10 ft. |
8 ft. |
| PPRO-FS-150-10-8-T |
150 lbs. |
10 ft. |
8 ft. |
| PPRO-FS-150-10-10-B |
150 lbs. |
10 ft. |
10 ft. |
| PPRO-FS-150-10-10-T |
150 lbs. |
10 ft. |
10 ft. |
| PPRO-FS-150-10-12-B |
150 lbs. |
10 ft. |
12 ft. |
| PPRO-FS-150-10-12-T |
150 lbs. |
10 ft. |
12 ft. |
| PPRO-FS-150-12-8-B |
150 lbs. |
12 ft. |
8 ft. |
| PPRO-FS-150-12-8-T |
150 lbs. |
12 ft. |
8 ft. |
| PPRO-FS-150-12-10-B |
150 lbs. |
12 ft. |
10 ft. |
| PPRO-FS-150-12-10-T |
150 lbs. |
12 ft. |
10 ft. |
| PPRO-FS-150-12-12-B |
150 lbs. |
12 ft. |
12 ft. |
| PPRO-FS-150-12-12-T |
150 lbs. |
12 ft. |
12 ft. |
| Gorbel Wall Mounted PIVOT PRO |
 |
| Model No. |
Capacity |
Span |
| PPRO-WM-50-8-B |
50 lbs. |
8 ft. |
| PPRO-WM-50-8-T |
50 lbs. |
8 ft. |
| PPRO-WM-50-10-B |
50 lbs. |
10 ft. |
| PPRO-WM-50-10-T |
50 lbs. |
10 ft. |
| PPRO-WM-50-12-B |
50 lbs. |
12 ft. |
| PPRO-WM-50-12-T |
50 lbs. |
12 ft. |
| PPRO-WM-75-8-B |
75 lbs. |
8 ft. |
| PPRO-WM-75-8-T |
75 lbs. |
8 ft. |
| PPRO-WM-75-10-B |
75 lbs. |
10 ft. |
| PPRO-WM-75-10-T |
75 lbs. |
10 ft. |
| PPRO-WM-75-12-B |
75 lbs. |
12 ft. |
| PPRO-WM-75-12-T |
75 lbs. |
12 ft. |
| PPRO-WM-100-8-B |
100 lbs. |
8 ft. |
| PPRO-WM-100-8-T |
100 lbs. |
8 ft. |
| PPRO-WM-100-10-B |
100 lbs. |
10 ft. |
| PPRO-WM-100-10-T |
100 lbs. |
10 ft. |
| PPRO-WM-100-12-B |
100 lbs. |
12 ft. |
| PPRO-WM-100-12-T |
100 lbs. |
12 ft. |
| PPRO-WM-150-8-B |
150 lbs. |
8 ft. |
| PPRO-WM-150-8-T |
150 lbs. |
8 ft. |
| PPRO-WM-150-10-B |
150 lbs. |
10 ft. |
| PPRO-WM-150-10-T |
150 lbs. |
10 ft. |
| PPRO-WM-150-12-B |
150 lbs. |
12 ft. |
| PPRO-WM-150-12-T |
150 lbs. |
12 ft. |
Gorbel Articulating Jib Crane Documents
Ergonomic Partners services, and is a distributor for Gorbel Pivot Pro Articulated Jib Cranes; serving clients from coast to coast, Canada, and Mexico, and especially focused in the states of Missouri, Illinois, Indiana, Iowa, Kansas, Nebraska, Arkansas, Mississippi, Tennessee, Kentucky, South Carolina, Florida, and Oklahoma.
